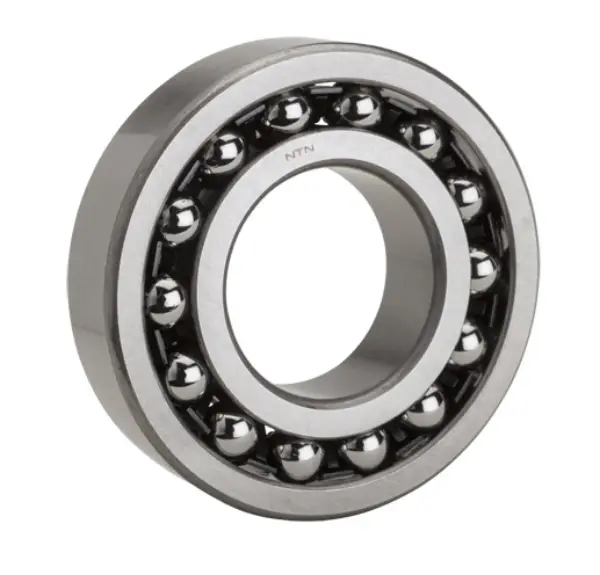

NTN 2316L1
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
4000 RPM
Limiting Speed - Grease
3200 RPM
Y1
1.60
Y2
2.50
Y0
1.70
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
45000 N
Dynamic Load Rating
130000 N
Enclosure
Open
Weight
6.112 kg
Operating Temperature Range
-40 to 120 ºC

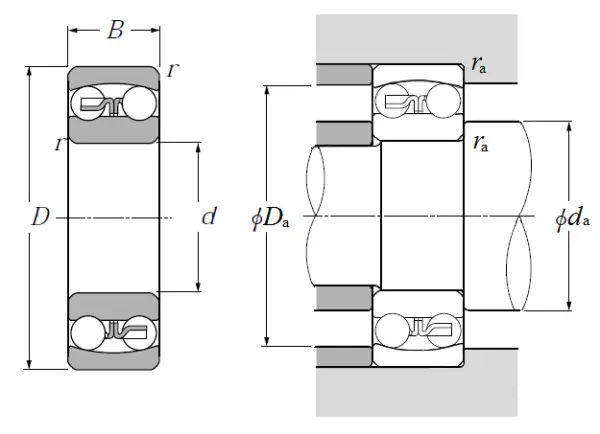

Dimensional Specifications
d
80.000 mm
D
170.000 mm
B
58.000 mm
r
2.100 mm
da min
91.000 mm
Da max
159.000 mm
ras max
2.000 mm
