FAG 6203-C-2HRS-L038>V
Deep Groove Ball Bearings

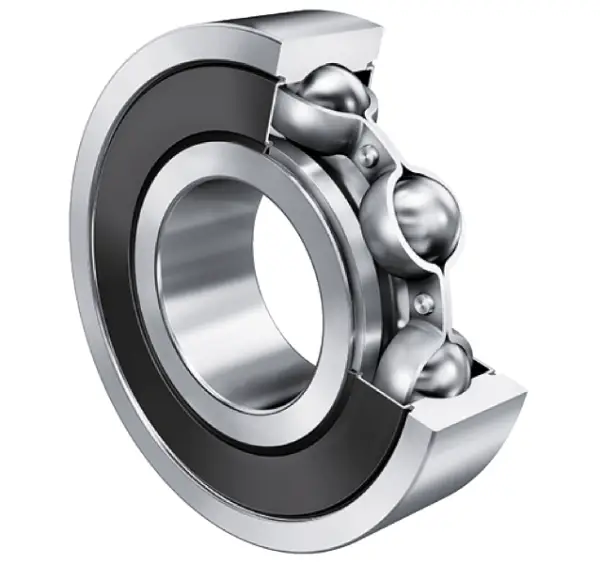

Deep groove ball bearing 62..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

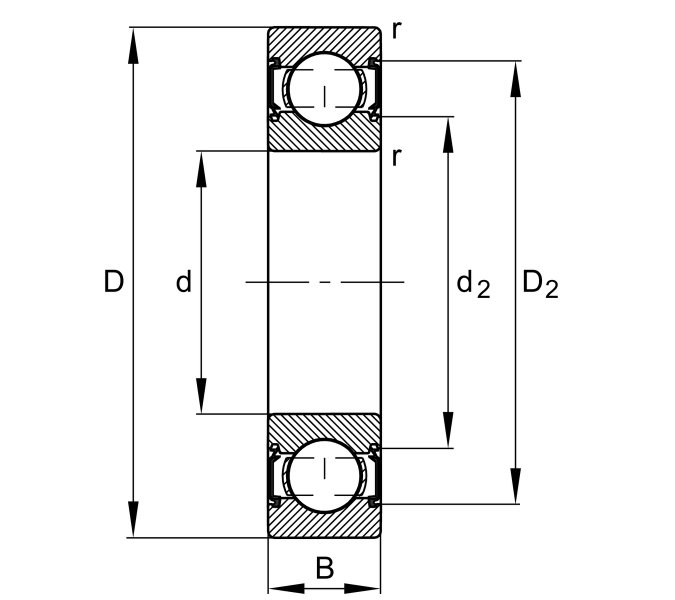

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
40 mm
Outside diameter
B
12 mm
Width
Cr
11,000 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
330 N
Fatigue load limit, radial
CG
16,900 1/min
Limiting speed
≈m
0.065 kg
Weight

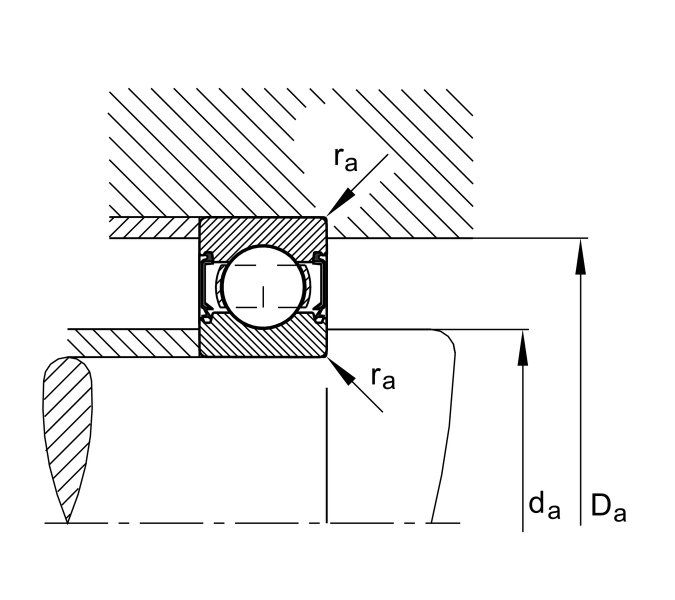

Mounting dimensions
da min
21.2 mm
Minimum diameter shaft shoulder
da min
35.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
