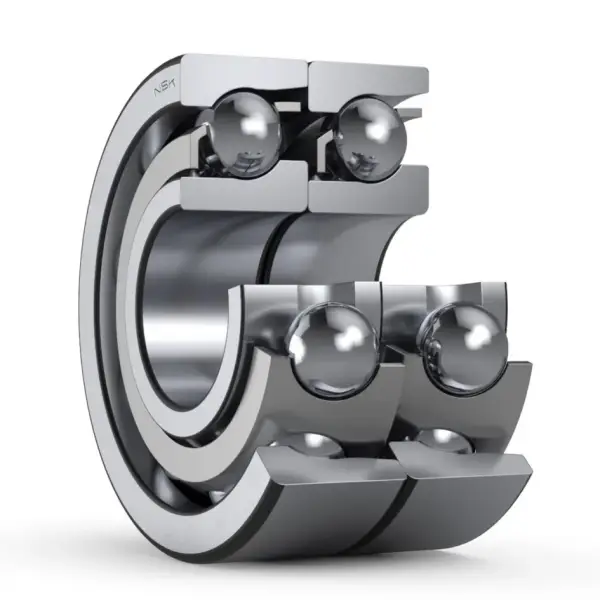

NSK 7204BWDT
Matched Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
7204BWDT
Boundary Dimensions
d
20
mm
Bore diameter
D
47
mm
Outside diameter
2B
28
mm
Width 2B
r (min.)
1
mm
Chamfer dimension
r1 (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
23800
N
Basic dynamic load rating
C0r
15300
N
Basic static load rating
Speeds
Grease
7500
min-1
Grease lubrication
Oil (Oil-bath)
11000
min-1
Oil-bath lubrication
da (min.)
26
mm
Diameter of shaft abutment
Da (max.)
41
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.218
kg
Mass approx.
