NSK AH24060
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH24060

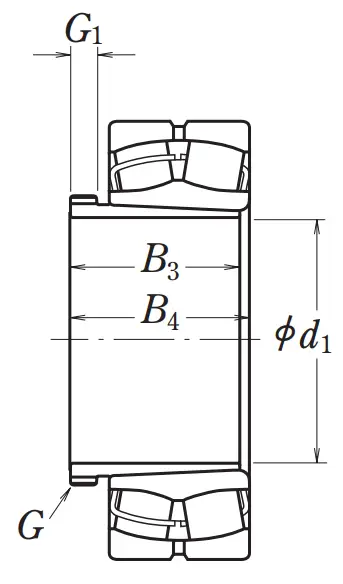

Dimensions
d1
280
mm
Shaft diameter
d
300
mm
Nominal bore diameter
B3
184
mm
Width of withdrawal sleeve
B4
202
mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr310x5
Screw thread
G1
24
mm
Length thread
Mass
Mass
15.5
kg
Mass (approx.)
