NSK AH24140
Withdrawal sleeve
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AH24140

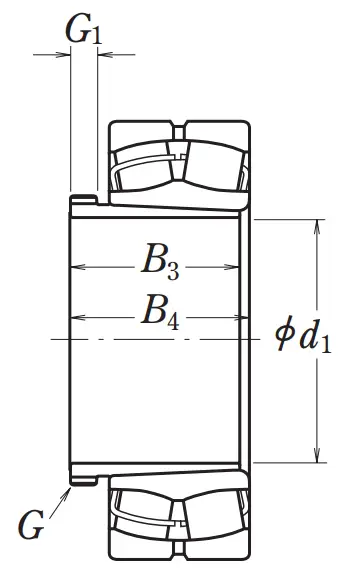

Dimensions
d1
190
mm
Shaft diameter
d
200
mm
Nominal bore diameter
B3
158
mm
Width of withdrawal sleeve
B4
171
mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr210x4
Screw thread
G1
18
mm
Length thread
Mass
Mass
5
kg
Mass (approx.)
