FAG 1319-M
Self-Aligning Ball Bearings
Self-aligning ball bearing 13..-M, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
45 mm
Width
Cr
134,000 N
Basic dynamic load rating, radial
C0r
51,000 N
Basic static load rating, radial
Cur
2,650 N
Fatigue load limit, radial
CG
5,100 1/min
Limiting speed
nϑr
4,050 1/min
Reference speed
≈m
7 kg
Weight

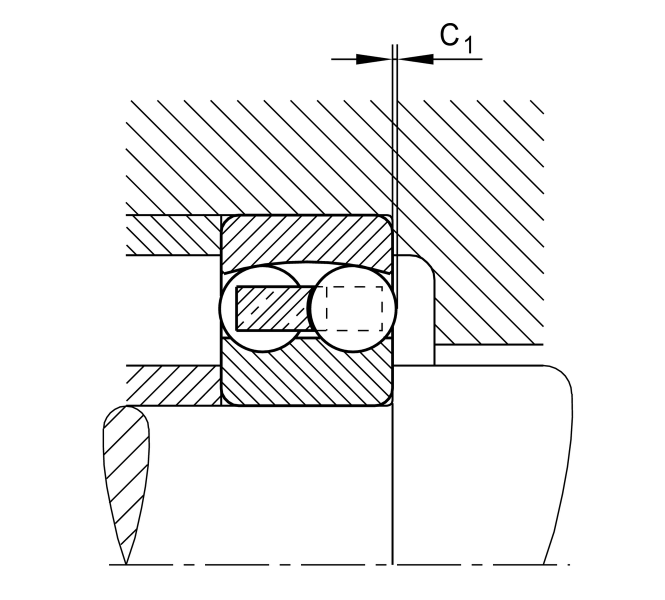

Mounting dimensions
da min
109 mm
Minimum diameter shaft shoulder
da min
186 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum fillet radius
