FAG 2219-K-M-C3
Self-Aligning Ball Bearings
Self-aligning ball bearing 22..-K-M, tapered bore taper 1:12, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

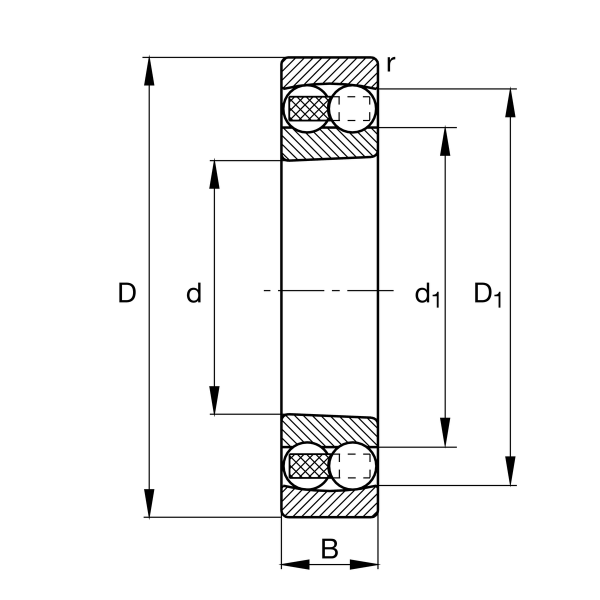

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
170 mm
Outside diameter
B
43 mm
Width
Cr
84,000 N
Basic dynamic load rating, radial
C0r
34,500 N
Basic static load rating, radial
Cur
1,890 N
Fatigue load limit, radial
CG
6,100 1/min
Limiting speed
nϑr
5,000 1/min
Reference speed
≈m
4.142 kg
Weight

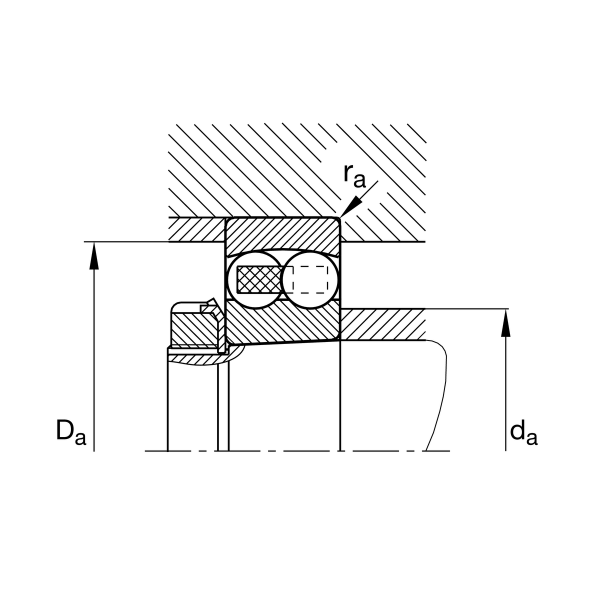

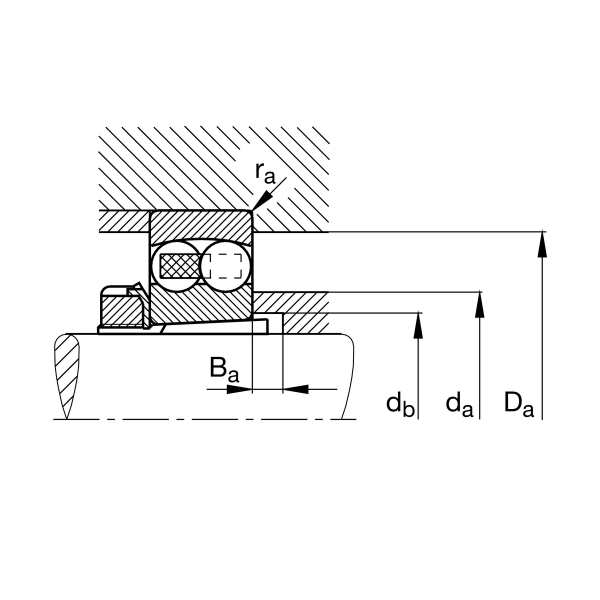

Mounting dimensions
da min
107 mm
Minimum diameter shaft shoulder
da max
114 mm
Maximum diameter shaft shoulder
da min
158 mm
Maximum diameter of housing shoulder
db min
102 mm
Minimum cavity diameter of the sleeve
Ba min
9 mm
Minimum cavity width of the sleeve
ra max
2.1 mm
Maximum fillet radius
