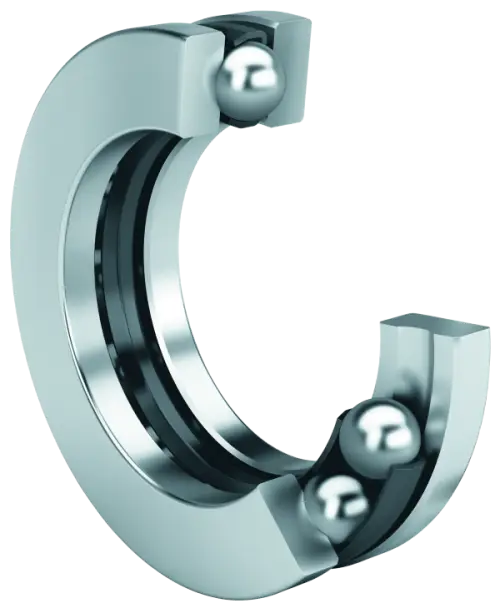

FAG 51106
Axial Ball Bearings
Axial deep groove ball bearing 511, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Inner diameter shaft washer
D
47 mm
Outer diameter housing washer
T
11 mm
Height
Ca
18,800 N
Basic dynamic load rating, axial
C0a
40,000 N
Basic static load rating, axial
Cua
1,820 N
Fatigue load limit, axial
CG
9,300 1/min
Limiting speed
nϑr
8,100 1/min
Reference speed
≈m
0.066 kg
Weight
Mounting dimensions
da min
40 mm
Minimum diameter shaft shoulder
da min
37 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum filled radius
