FAG 51108
Axial Ball Bearings

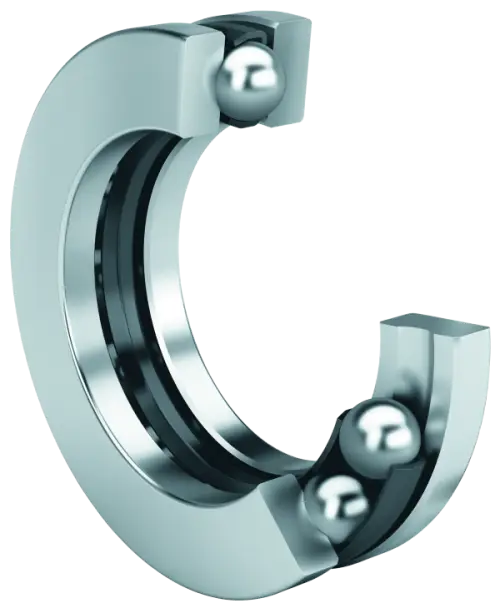

Axial deep groove ball bearing 511, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
40 mm
Inner diameter shaft washer
D
60 mm
Outer diameter housing washer
T
13 mm
Height
Ca
25,500 N
Basic dynamic load rating, axial
C0a
62,000 N
Basic static load rating, axial
Cua
2,850 N
Fatigue load limit, axial
CG
7,400 1/min
Limiting speed
nϑr
6,400 1/min
Reference speed
≈m
119 g
Weight
Mounting dimensions
da min
52 mm
Minimum diameter shaft shoulder
da min
48 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum filled radius
