FAG 51132-MP
Axial Ball Bearings

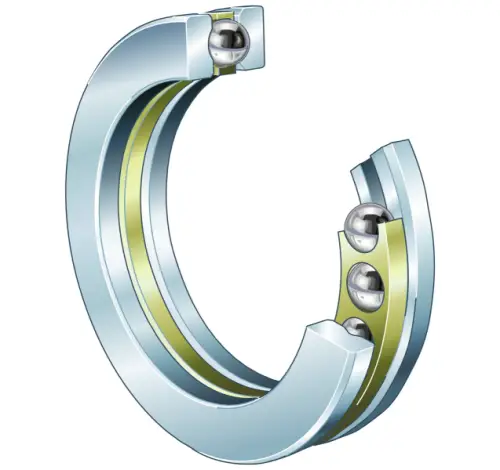

Axial deep groove ball bearing 511..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Inner diameter shaft washer
D
200 mm
Outer diameter housing washer
T
31 mm
Height
Ca
112,000 N
Basic dynamic load rating, axial
C0a
425,000 N
Basic static load rating, axial
Cua
14,600 N
Fatigue load limit, axial
CG
2,550 1/min
Limiting speed
nϑr
2,060 1/min
Reference speed
≈m
2.259 kg
Weight
Mounting dimensions
da min
184 mm
Minimum diameter shaft shoulder
da min
176 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
