FAG 51207
Axial Ball Bearings

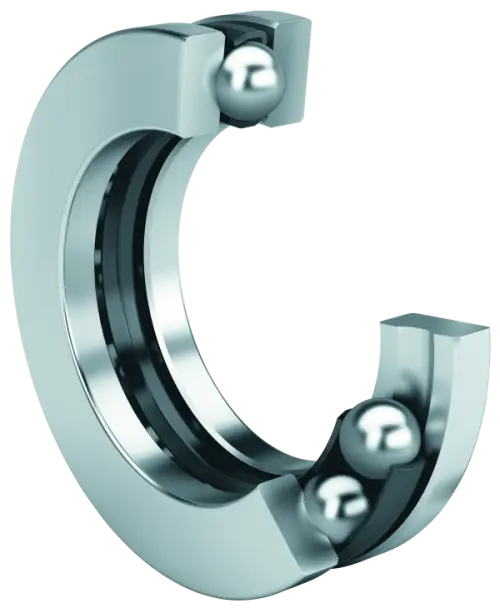

Axial deep groove ball bearing 512, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

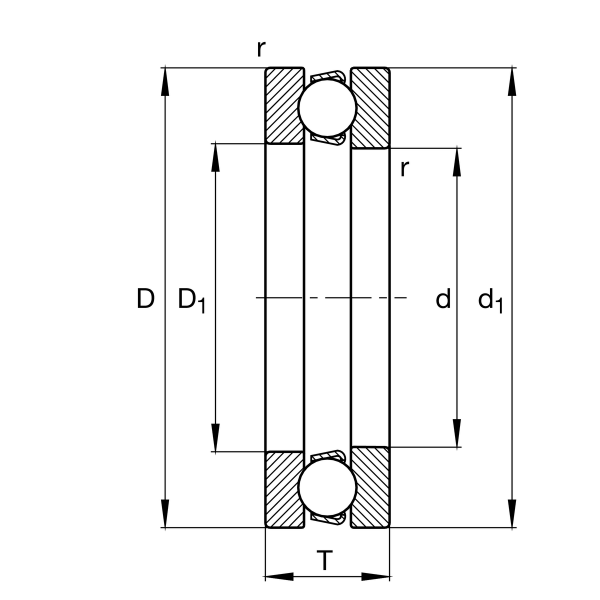

Main Dimensions & Performance Data
d
35 mm
Inner diameter shaft washer
D
62 mm
Outer diameter housing washer
T
18 mm
Height
Ca
35,500 N
Basic dynamic load rating, axial
C0a
67,000 N
Basic static load rating, axial
Cua
3,100 N
Fatigue load limit, axial
CG
6,000 1/min
Limiting speed
nϑr
8,000 1/min
Reference speed
≈m
220 g
Weight

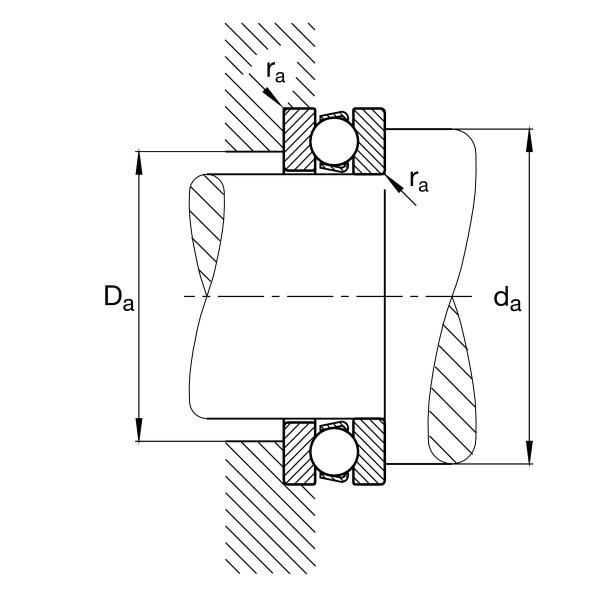

Mounting dimensions
da min
51 mm
Minimum diameter shaft shoulder
da min
46 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
