FAG 51307

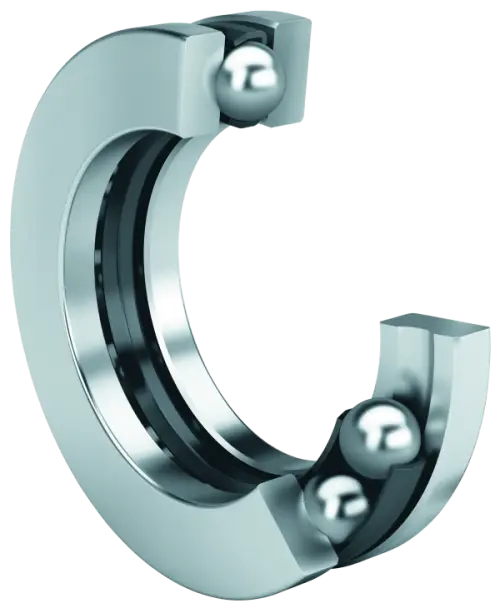

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

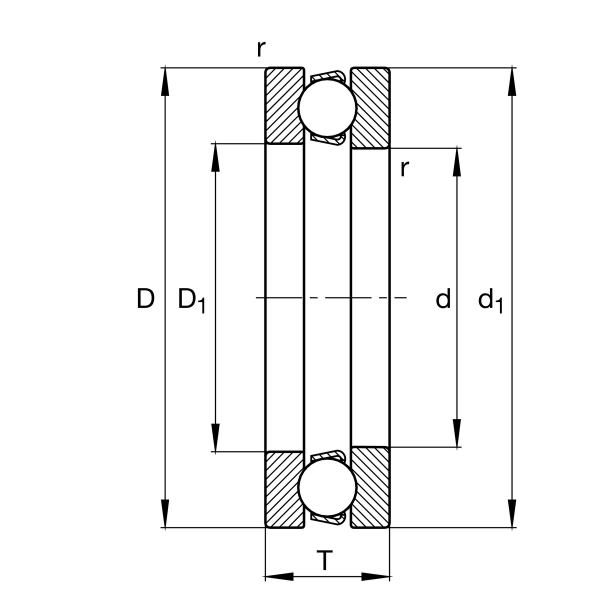

d 35 mm Inner diameter shaft washer

D 68 mm Outer diameter housing washer

T 24 mm Height

C_a 50,000 N Basic dynamic load rating, axial

C_0a 89,000 N Basic static load rating, axial

C_ua 4,050 N Fatigue load limit, axial

C_G 4,850 1/min Limiting speed

nϑr 8,200 1/min Reference speed

≈m 0.304 kg Weight

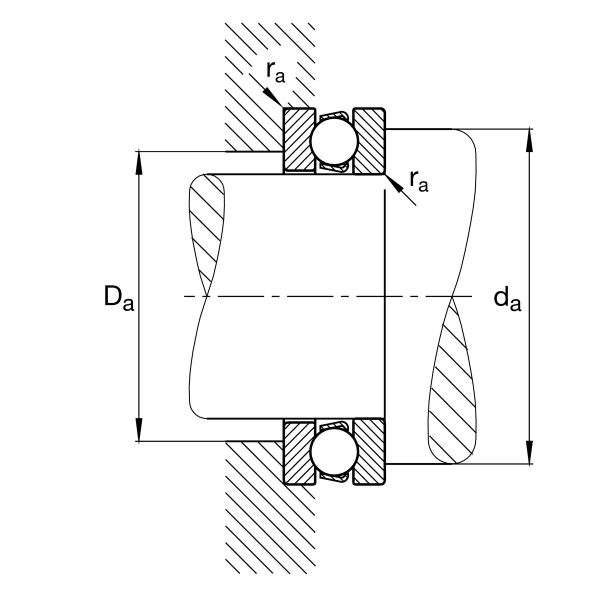

d_{a min} 55 mm Minimum diameter shaft shoulder

d_{a min} 48 mm Maximum diameter of housing shoulder

r_{a max} 1 mm Maximum filled radius
