FAG 51332-MP
Axial Ball Bearings

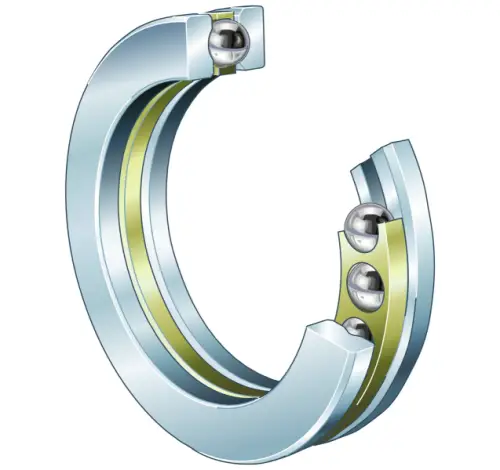

Axial deep groove ball bearing 513..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Inner diameter shaft washer
D
270 mm
Outer diameter housing washer
T
87 mm
Height
Ca
445,000 N
Basic dynamic load rating, axial
C0a
1,560,000 N
Basic static load rating, axial
Cua
48,500 N
Fatigue load limit, axial
CG
1,230 1/min
Limiting speed
nϑr
2,280 1/min
Reference speed
≈m
20.638 kg
Weight
Mounting dimensions
da min
226 mm
Minimum diameter shaft shoulder
da min
204 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum filled radius
