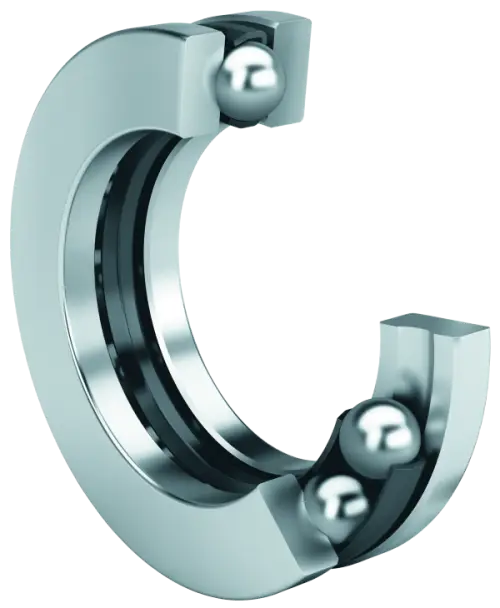

FAG 51405
Axial Ball Bearings
Axial deep groove ball bearing 514, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
25 mm
Inner diameter shaft washer
D
60 mm
Outer diameter housing washer
T
24 mm
Height
Ca
43,000 N
Basic dynamic load rating, axial
C0a
66,000 N
Basic static load rating, axial
Cua
3,000 N
Fatigue load limit, axial
CG
4,700 1/min
Limiting speed
nϑr
10,900 1/min
Reference speed
≈m
0.317 kg
Weight
Mounting dimensions
da min
46 mm
Minimum diameter shaft shoulder
da min
39 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
