FAG 51407

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

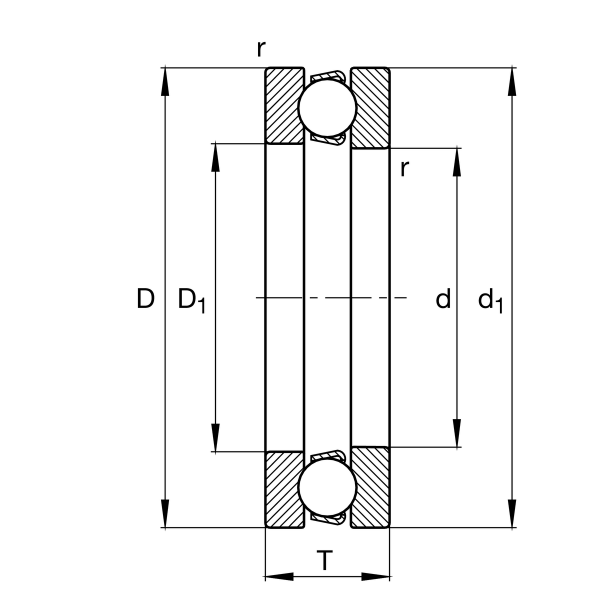

d 35 mm Inner diameter shaft washer

D 80 mm Outer diameter housing washer

T 32 mm Height

C_a 76,000 N Basic dynamic load rating, axial

C_0a 126,000 N Basic static load rating, axial

C_ua 5,700 N Fatigue load limit, axial

C_G 3,600 1/min Limiting speed

nϑr 8,500 1/min Reference speed

≈m 0.739 kg Weight

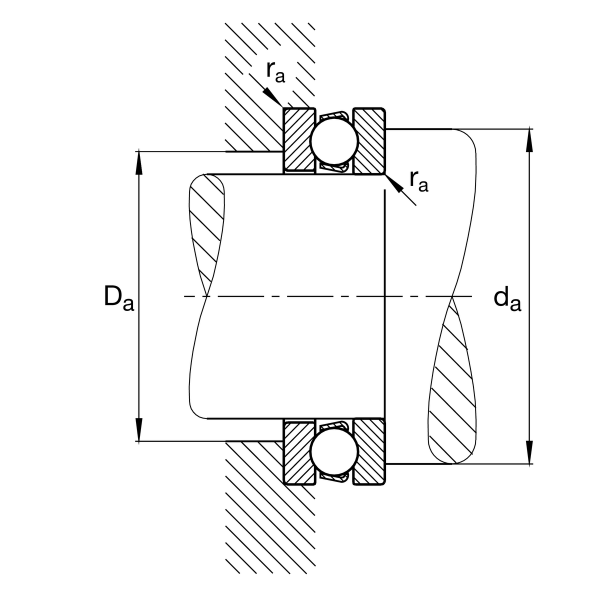

d_{a min} 62 mm Minimum diameter shaft shoulder

d_{a min} 53 mm Maximum diameter of housing shoulder

r_{a max} 1 mm Maximum filled radius
