FAG 51426-MP
Axial Ball Bearings

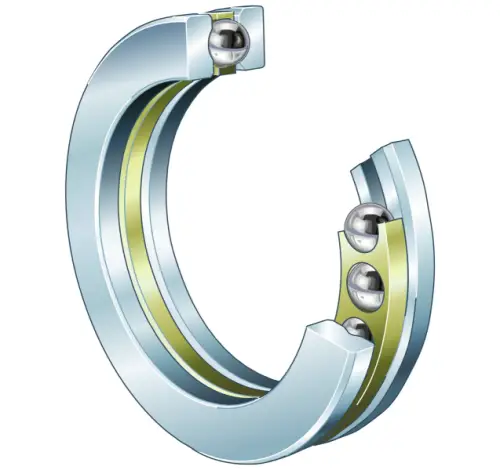

Axial deep groove ball bearing 514..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Inner diameter shaft washer
D
270 mm
Outer diameter housing washer
T
110 mm
Height
Ca
560,000 N
Basic dynamic load rating, axial
C0a
1,750,000 N
Basic static load rating, axial
Cua
57,000 N
Fatigue load limit, axial
CG
1,030 1/min
Limiting speed
nϑr
2,650 1/min
Reference speed
≈m
32.02 kg
Weight
Mounting dimensions
da min
214 mm
Minimum diameter shaft shoulder
da min
186 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum filled radius
