FAG 52209

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

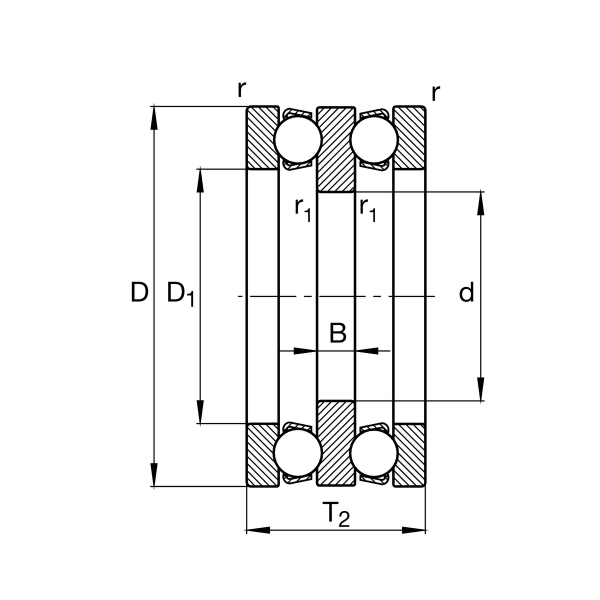

d 35 mm Inner diameter shaft washer

D 73 mm Outer diameter housing washer

T2 37 mm Height

C_a 39,000 N Basic dynamic load rating, axial

C_0a 80,000 N Basic static load rating, axial

C_ua 3,650 N Fatigue load limit, axial

C_G 5,500 1/min Limiting speed

nϑr 6,500 1/min Reference speed

≈m 0.57 kg Weight

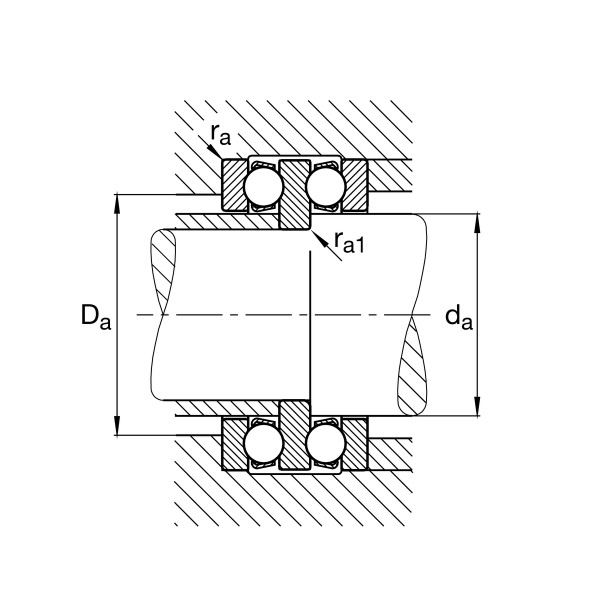

d_{a max} 45 mm Maximum diameter shaft shoulder

d_{a min} 56 mm Maximum diameter of housing shoulder

r_{a max} 1 mm Maximum filled radius

r_{a1 max} 0.6 mm Maximum filled radius
