FAG 52238-MP

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

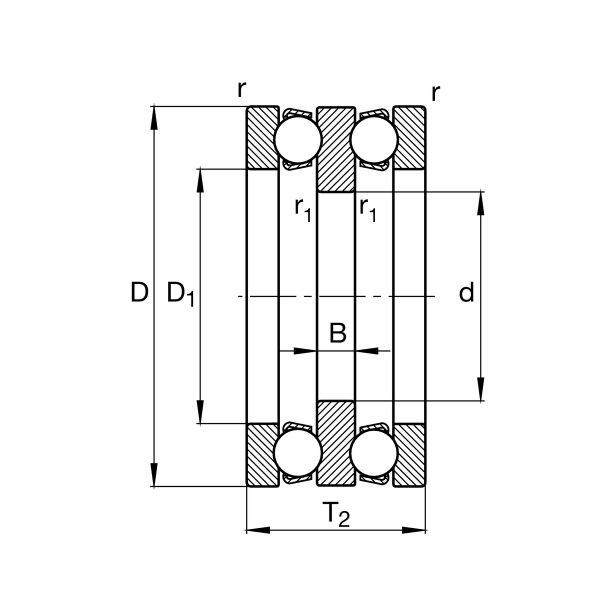

d 160 mm Inner diameter shaft washer

D 270 mm Outer diameter housing washer

T2 109 mm Height

C_a 335,000 N Basic dynamic load rating, axial

C_0a 1,170,000 N Basic static load rating, axial

C_ua 35,500 N Fatigue load limit, axial

C_G 1,540 1/min Limiting speed

nϑr 1,990 1/min Reference speed

≈m 22.1 kg Weight

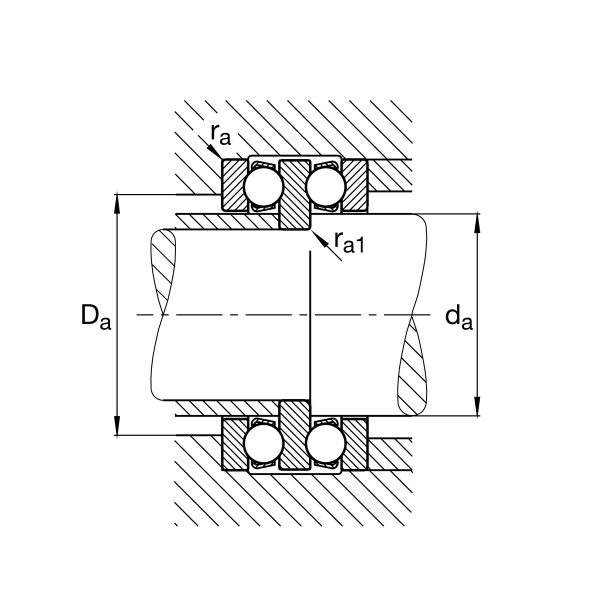

d_{a max} 190 mm Maximum diameter shaft shoulder

d_{a min} 222 mm Maximum diameter of housing shoulder

r_{a max} 2 mm Maximum filled radius

r_{a1 max} 2 mm Maximum filled radius
