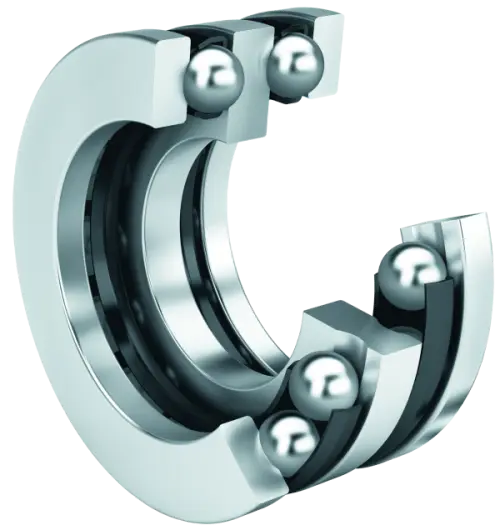

FAG 52306

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

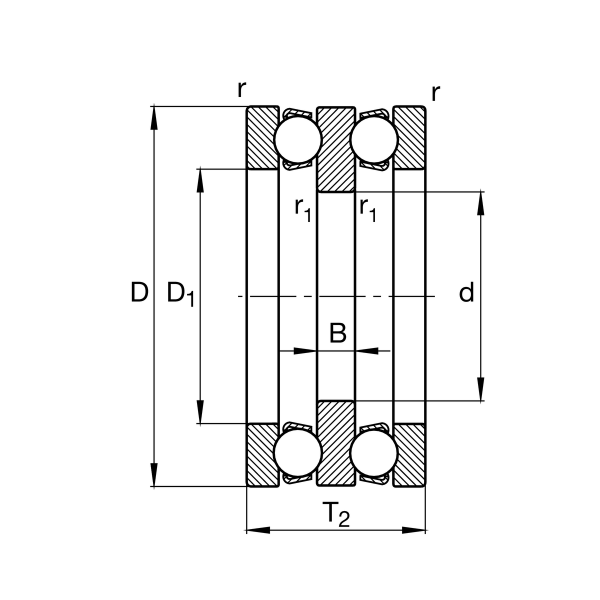

d 25 mm Inner diameter shaft washer

D 60 mm Outer diameter housing washer

T2 38 mm Height

C_a 35,500 N Basic dynamic load rating, axial

C_0a 65,000 N Basic static load rating, axial

C_ua 2,950 N Fatigue load limit, axial

C_G 5,700 1/min Limiting speed

nϑr 8,600 1/min Reference speed

≈m 435 g Weight

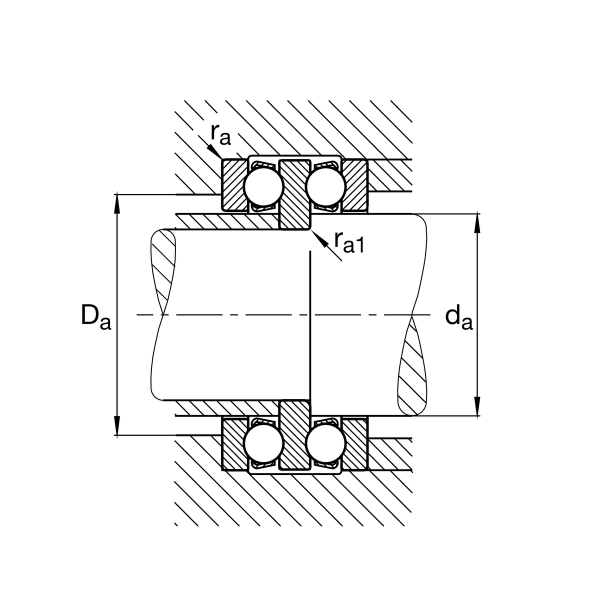

d_{a max} 30 mm Maximum diameter shaft shoulder

d_{a min} 42 mm Maximum diameter of housing shoulder

r_{a max} 1 mm Maximum filled radius

r_{a1 max} 0.3 mm Maximum filled radius
