FAG 53205
Axial Ball Bearings

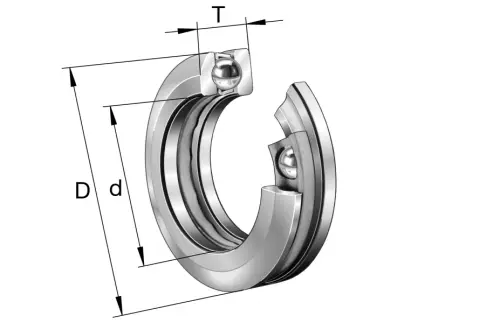

Axial deep groove ball bearing 532, single direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

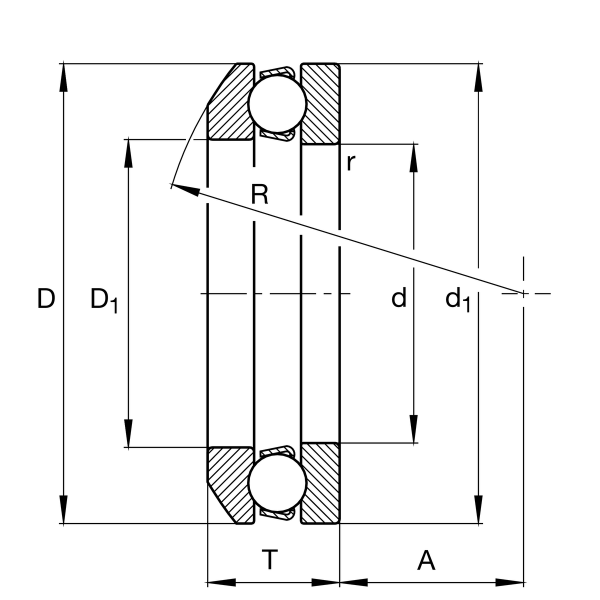

Main Dimensions & Performance Data
d
25 mm
Inner diameter shaft washer
D
47 mm
Outer diameter housing washer
T
16.7 mm
Height
Ca
26,500 N
Basic dynamic load rating, axial
C0a
50,000 N
Basic static load rating, axial
Cua
2,280 N
Fatigue load limit, axial
CG
7,500 1/min
Limiting speed
nϑr
9,800 1/min
Reference speed
≈m
0.119 kg
Weight
Mounting dimensions
da min
38 mm
Minimum diameter shaft shoulder
da min
36 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum filled radius
