FAG 53208
Axial Ball Bearings

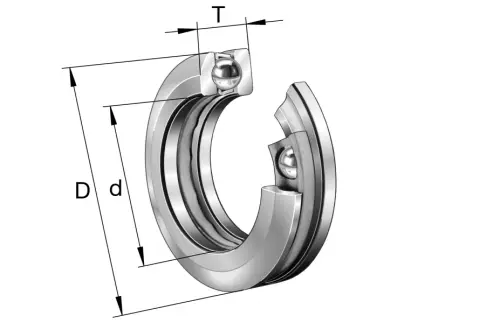

Axial deep groove ball bearing 532, single direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

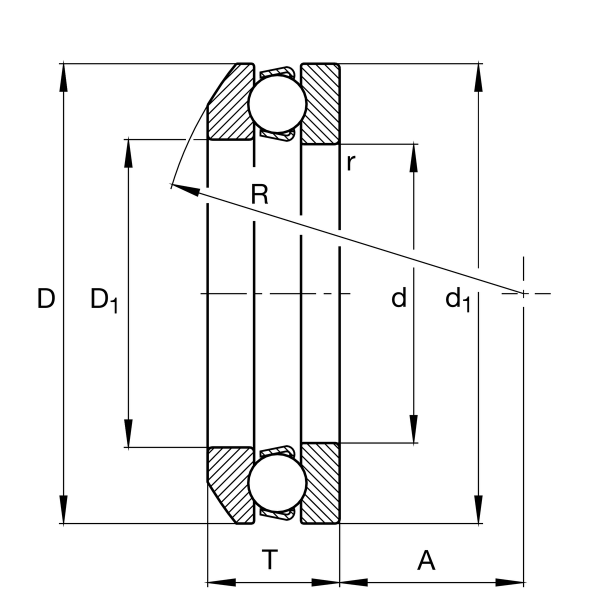

Main Dimensions & Performance Data
d
40 mm
Inner diameter shaft washer
D
68 mm
Outer diameter housing washer
T
20.3 mm
Height
Ca
44,000 N
Basic dynamic load rating, axial
C0a
97,000 N
Basic static load rating, axial
Cua
4,400 N
Fatigue load limit, axial
CG
5,500 1/min
Limiting speed
nϑr
6,900 1/min
Reference speed
≈m
0.28 kg
Weight

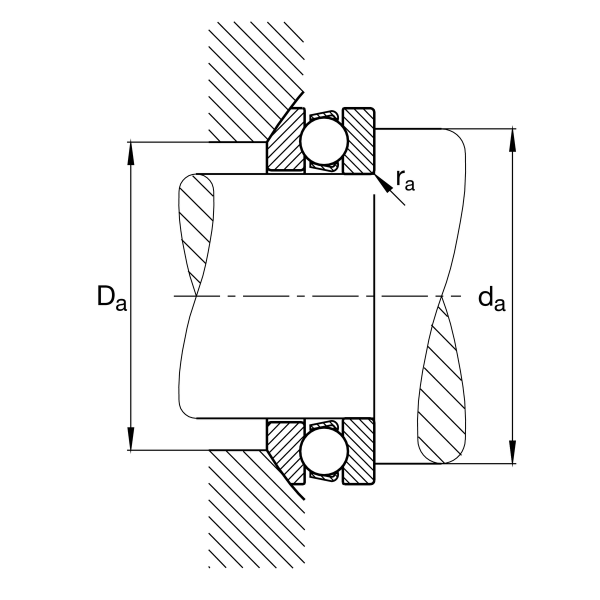

Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
da min
55 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
