FAG 53234-MP
Axial Ball Bearings

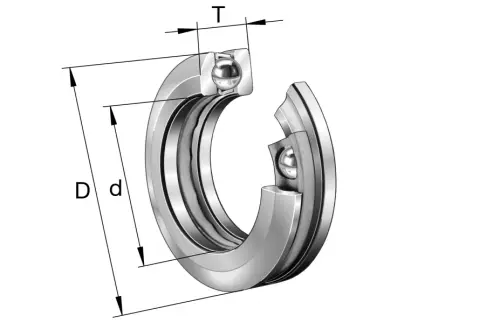

Axial deep groove ball bearing 532..-MP, single direction, with spherical housing washer, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

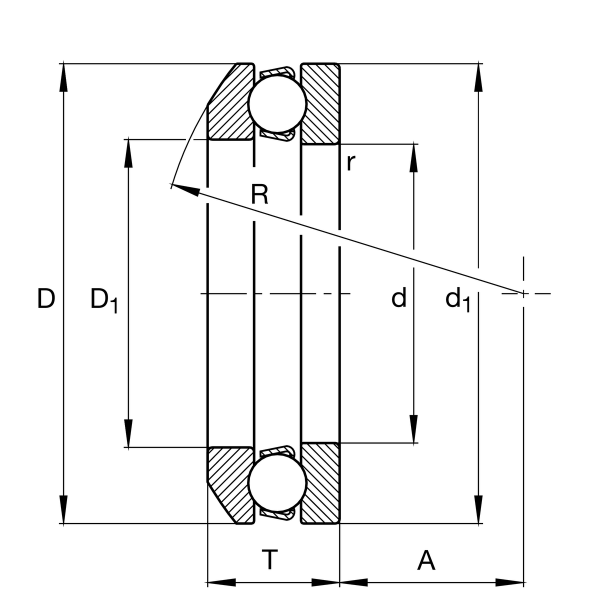

Main Dimensions & Performance Data
d
170 mm
Inner diameter shaft washer
D
240 mm
Outer diameter housing washer
T
58.7 mm
Height
Ca
285,000 N
Basic dynamic load rating, axial
C0a
930,000 N
Basic static load rating, axial
Cua
29,500 N
Fatigue load limit, axial
CG
1,740 1/min
Limiting speed
nϑr
2,230 1/min
Reference speed
≈m
7.92 kg
Weight

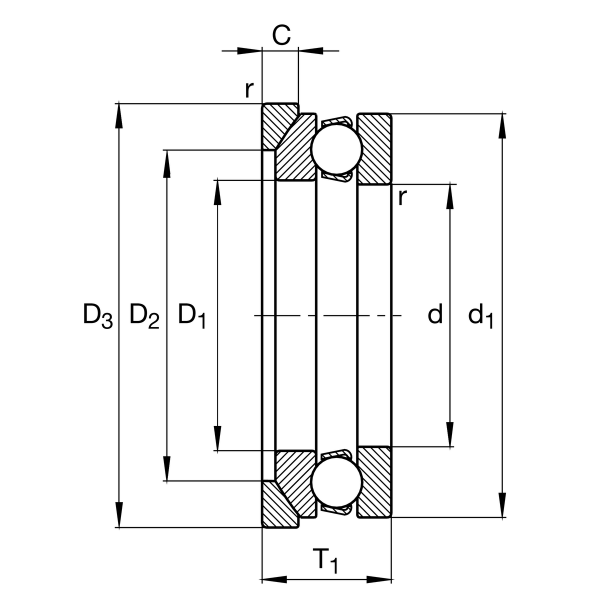

Mounting dimensions
da min
212 mm
Minimum diameter shaft shoulder
da min
200 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum filled radius
