FAG 53305
Axial Ball Bearings
Axial deep groove ball bearing 533, single direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

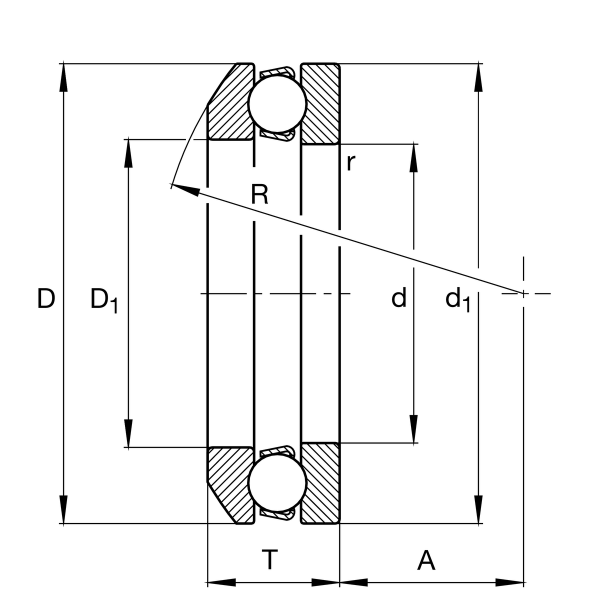

Main Dimensions & Performance Data
d
25 mm
Inner diameter shaft washer
D
52 mm
Outer diameter housing washer
T
19.8 mm
Height
Ca
34,500 N
Basic dynamic load rating, axial
C0a
55,000 N
Basic static load rating, axial
Cua
2,500 N
Fatigue load limit, axial
CG
6,000 1/min
Limiting speed
nϑr
10,400 1/min
Reference speed
≈m
0.175 kg
Weight

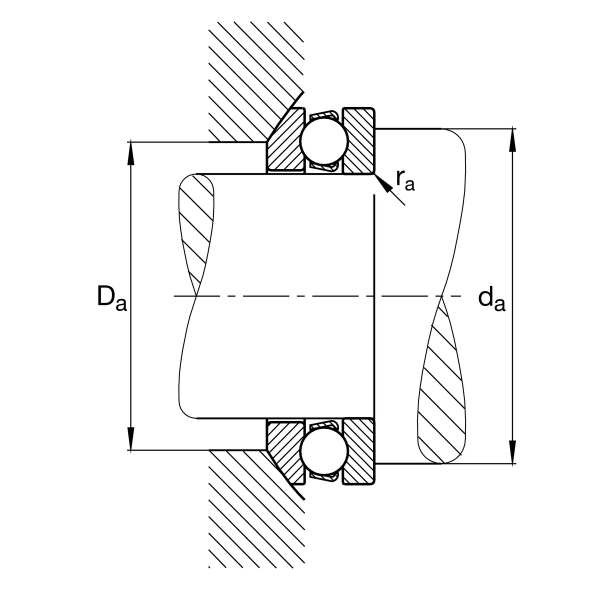

Mounting dimensions
da min
41 mm
Minimum diameter shaft shoulder
da min
38 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
