FAG 54206
Axial Ball Bearings
Axial deep groove ball bearing 542, double direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

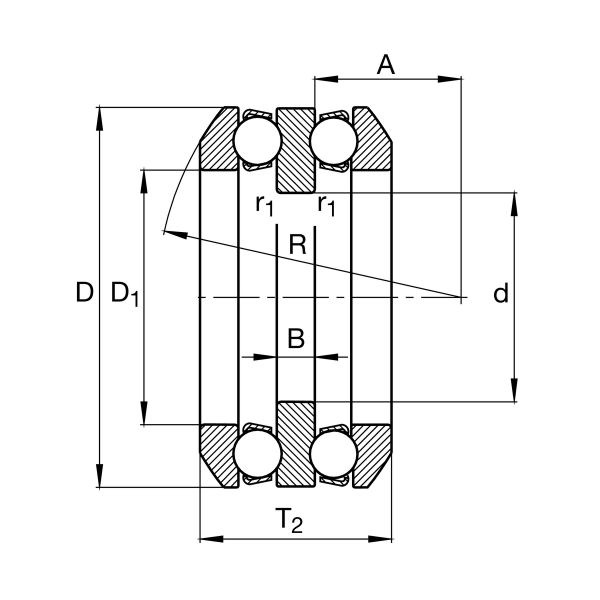

Main Dimensions & Performance Data
d
25 mm
Inner diameter shaft washer
D
52 mm
Outer diameter housing washer
T2
32.6 mm
Height
Ca
23,900 N
Basic dynamic load rating, axial
C0a
46,000 N
Basic static load rating, axial
Cua
2,100 N
Fatigue load limit, axial
CG
7,300 1/min
Limiting speed
nϑr
8,200 1/min
Reference speed
≈m
0.259 kg
Weight

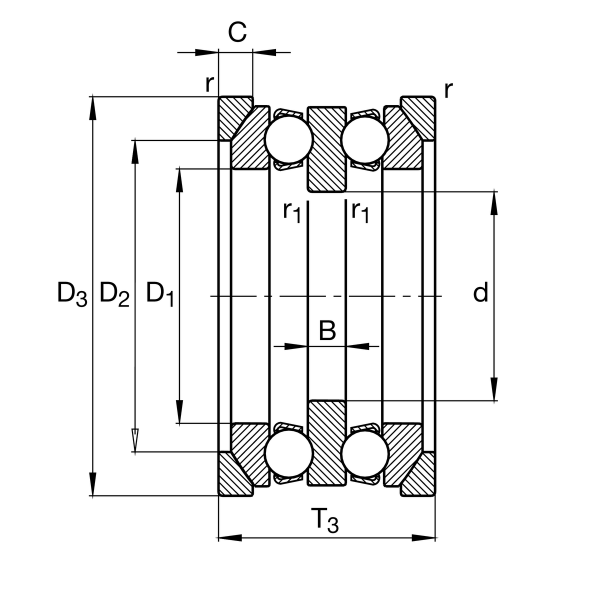

Mounting dimensions
da max
30 mm
Maximum diameter shaft shoulder
da min
42 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum filled radius
ra1 max
0.3 mm
Maximum filled radius
