FAG 54236-MP
Axial Ball Bearings
Axial deep groove ball bearing 542..-MP, double direction, with spherical housing washer, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

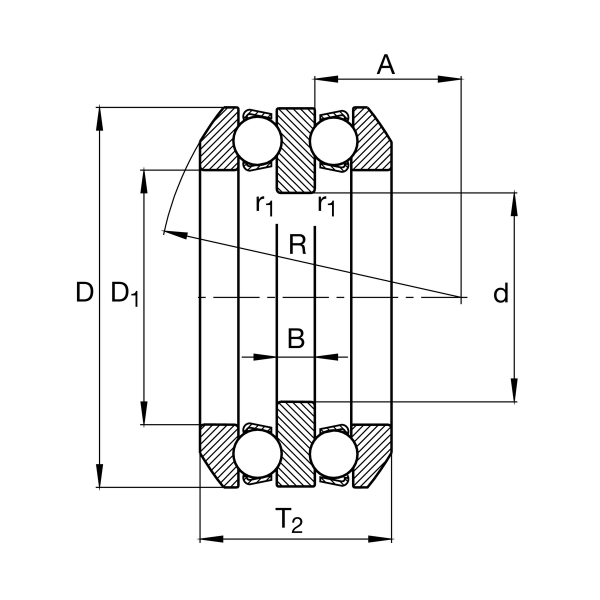

Main Dimensions & Performance Data
d
150 mm
Inner diameter shaft washer
D
250 mm
Outer diameter housing washer
T2
102.4 mm
Height
Ca
305,000 N
Basic dynamic load rating, axial
C0a
1,030,000 N
Basic static load rating, axial
Cua
32,500 N
Fatigue load limit, axial
CG
1,670 1/min
Limiting speed
nϑr
2,120 1/min
Reference speed
≈m
15.53 kg
Weight
Mounting dimensions
da max
180 mm
Maximum diameter shaft shoulder
da min
210 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum filled radius
ra1 max
1 mm
Maximum filled radius
