FAG 54238-MP
Axial Ball Bearings

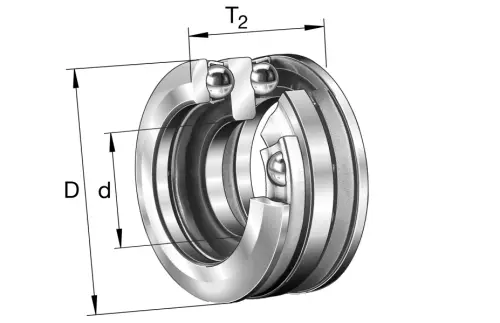

Axial deep groove ball bearing 542..-MP, double direction, with spherical housing washer, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

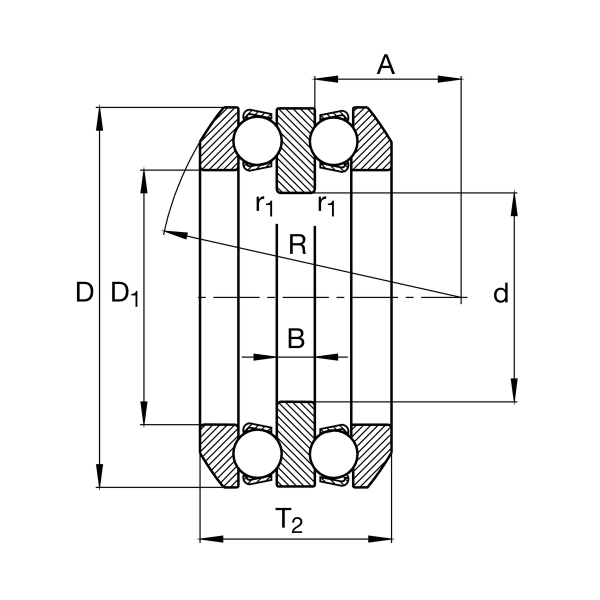

Main Dimensions & Performance Data
d
160 mm
Inner diameter shaft washer
D
270 mm
Outer diameter housing washer
T2
116.4 mm
Height
Ca
335,000 N
Basic dynamic load rating, axial
C0a
1,170,000 N
Basic static load rating, axial
Cua
35,500 N
Fatigue load limit, axial
CG
1,540 1/min
Limiting speed
nϑr
1,990 1/min
Reference speed
≈m
21.295 kg
Weight

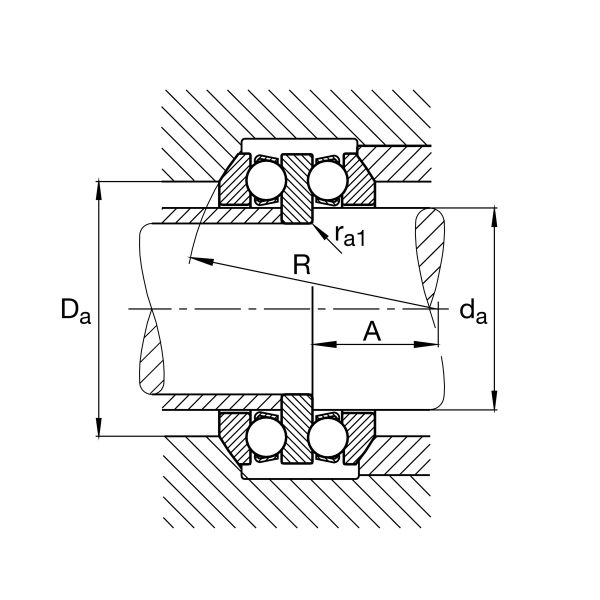

Mounting dimensions
da max
190 mm
Maximum diameter shaft shoulder
da min
230 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum filled radius
ra1 max
2 mm
Maximum filled radius
