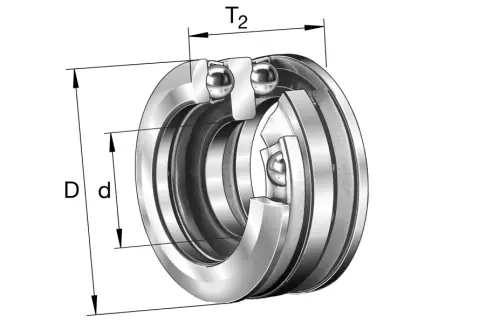

FAG 54309

Axial Ball Bearings

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

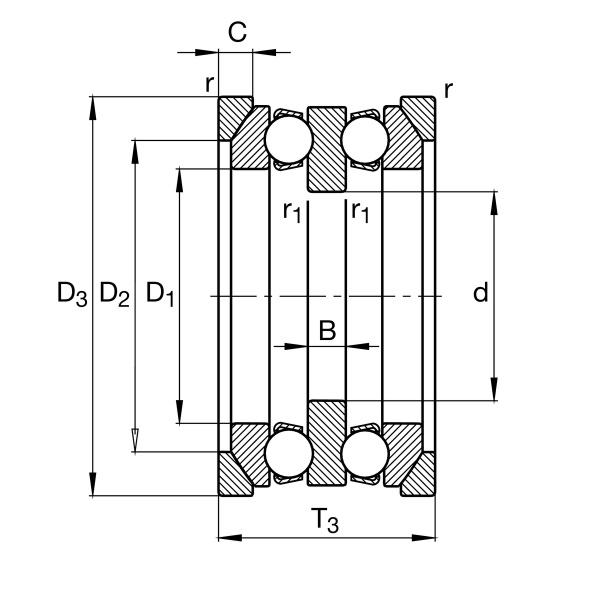

d 35 mm Inner diameter shaft washer

D 85 mm Outer diameter housing washer

T2 56.2 mm Height

C_a 75,000 N Basic dynamic load rating, axial

C_0a 140,000 N Basic static load rating, axial

C_ua 6,500 N Fatigue load limit, axial

C_G 3,800 1/min Limiting speed

nϑr 6,500 1/min Reference speed

≈m 1.28 kg Weight

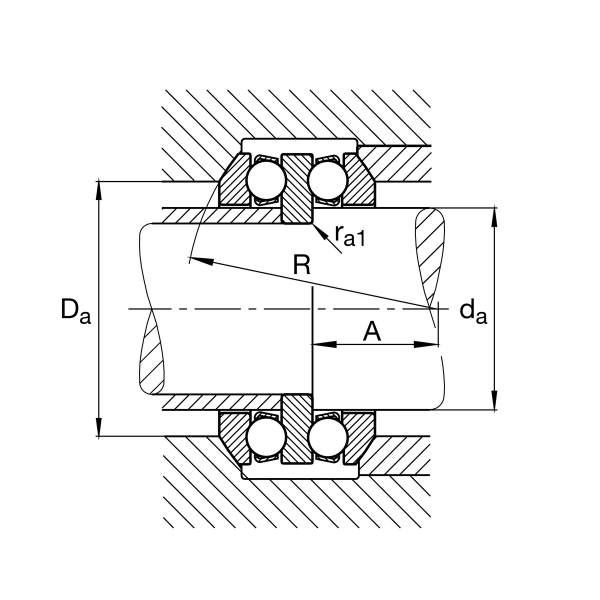

d_{a max} 45 mm Maximum diameter shaft shoulder

d_{a min} 65 mm Maximum diameter of housing shoulder

r_{a max} 1 mm Maximum filled radius

r_{a1 max} 0.6 mm Maximum filled radius
