FAG 61808-2RSR>N

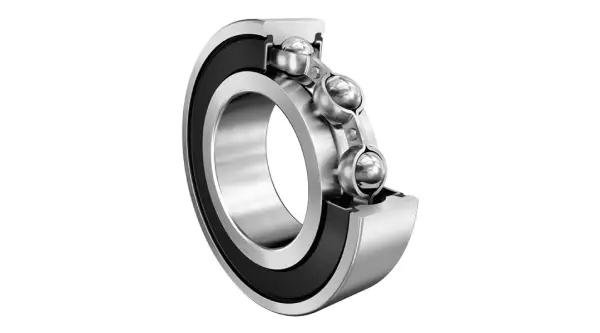

Deep groove ball bearing 618..-2RSR, single row, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

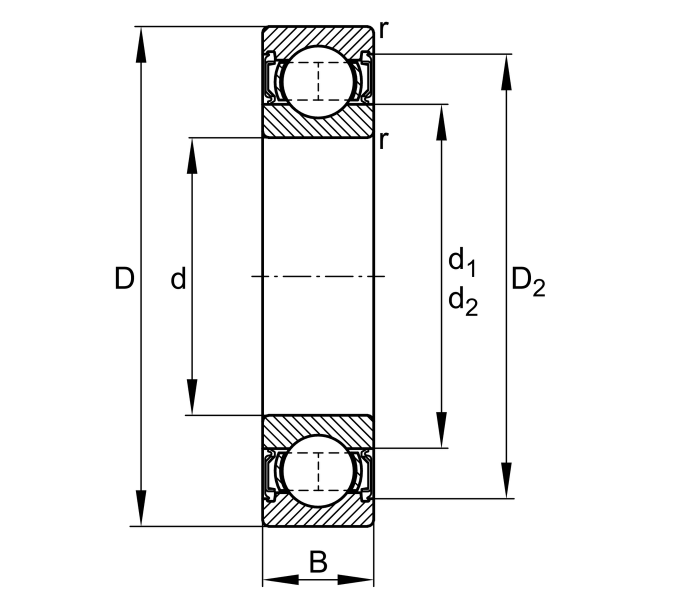

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
52 mm
Outside diameter
B
7 mm
Width
Cr
4,930 N
Basic dynamic load rating, radial
C0r
4,180 N
Basic static load rating, radial
Cur
255 N
Fatigue load limit, radial
CG
6,200 1/min
Limiting speed
≈m
0.032 kg
Weight
Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
da min
50 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum fillet radius
