FAG 6200-C-2HRS-C3>V
Deep Groove Ball Bearings

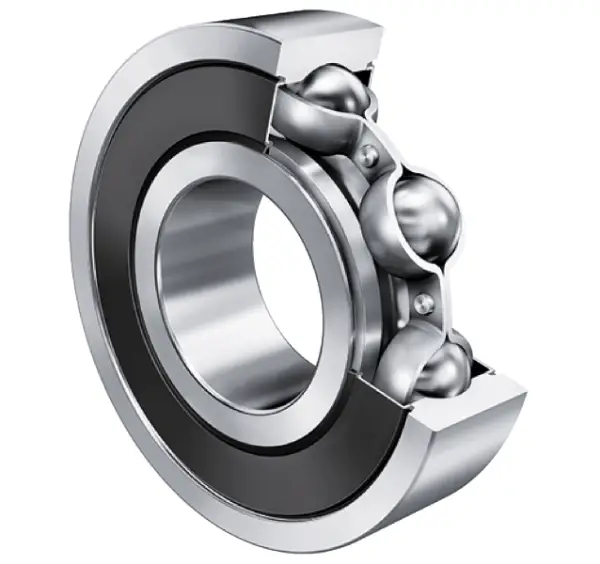

Deep groove ball bearing 62..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
10 mm
Bore diameter
D
30 mm
Outside diameter
B
9 mm
Width
Cr
7,000 N
Basic dynamic load rating, radial
C0r
2,600 N
Basic static load rating, radial
Cur
181 N
Fatigue load limit, radial
CG
26,000 1/min
Limiting speed
≈m
0.03 kg
Weight

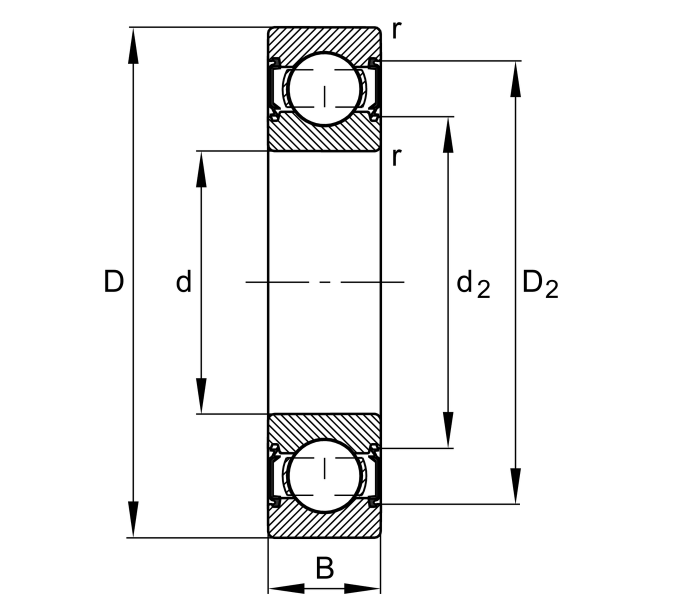

Mounting dimensions
da min
14.2 mm
Minimum diameter shaft shoulder
da min
25.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
