FAG 6201-C-2Z-L207-C3>V
Deep Groove Ball Bearings

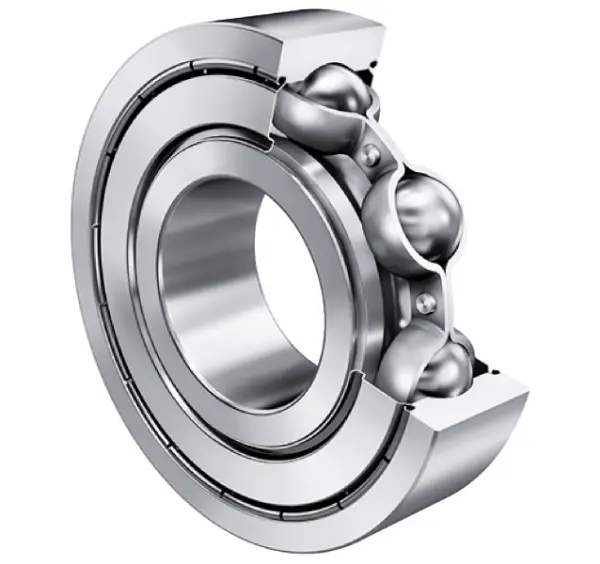

Deep groove ball bearing 62..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

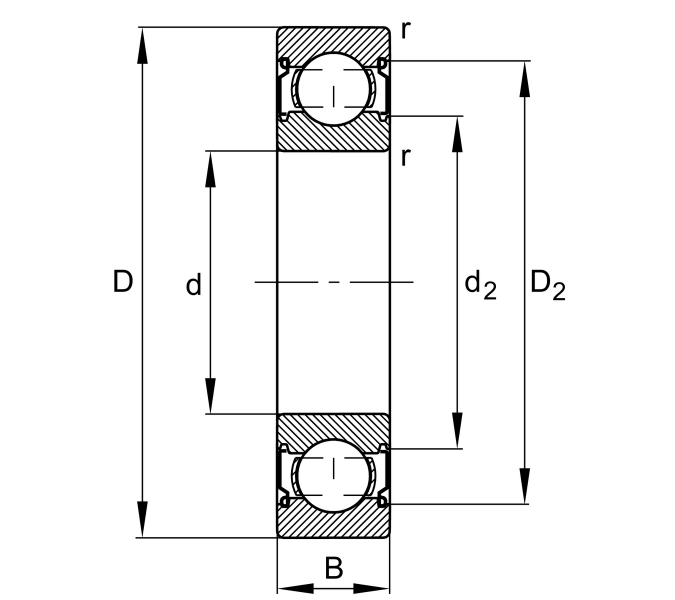

Main Dimensions & Performance Data
d
12 mm
Bore diameter
D
32 mm
Outside diameter
B
10 mm
Width
Cr
8,000 N
Basic dynamic load rating, radial
C0r
3,100 N
Basic static load rating, radial
Cur
213 N
Fatigue load limit, radial
CG
31,500 1/min
Limiting speed
nϑr
24,600 1/min
Reference speed
≈m
0.036 kg
Weight

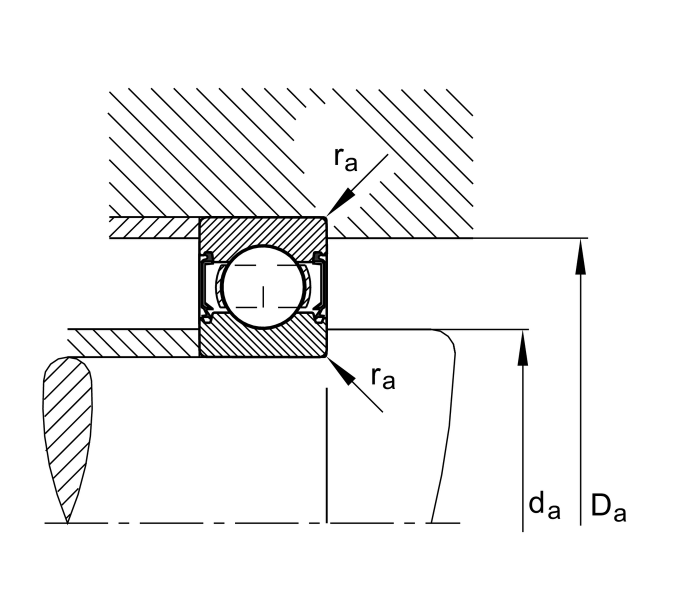

Mounting dimensions
da min
16.2 mm
Minimum diameter shaft shoulder
da min
27.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
