FAG 6208-C-2Z-C3>V

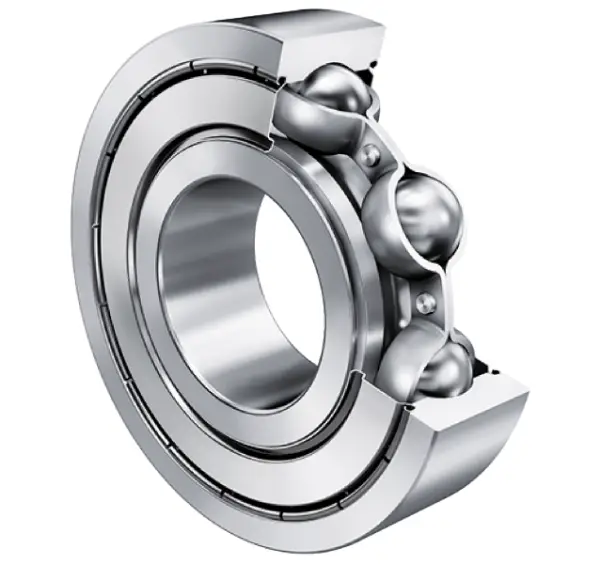

Deep groove ball bearing 62..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

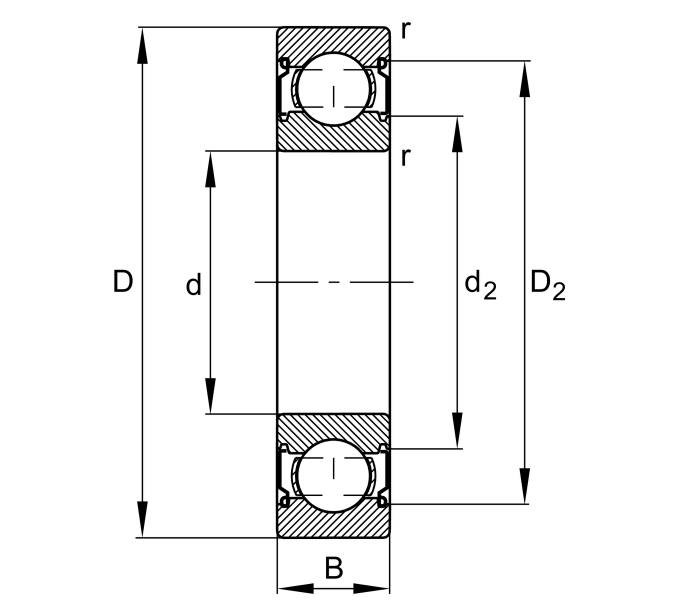

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
18 mm
Width
Cr
33,500 N
Basic dynamic load rating, radial
C0r
17,800 N
Basic static load rating, radial
Cur
1,230 N
Fatigue load limit, radial
CG
11,600 1/min
Limiting speed
nϑr
10,500 1/min
Reference speed
≈m
0.365 kg
Weight

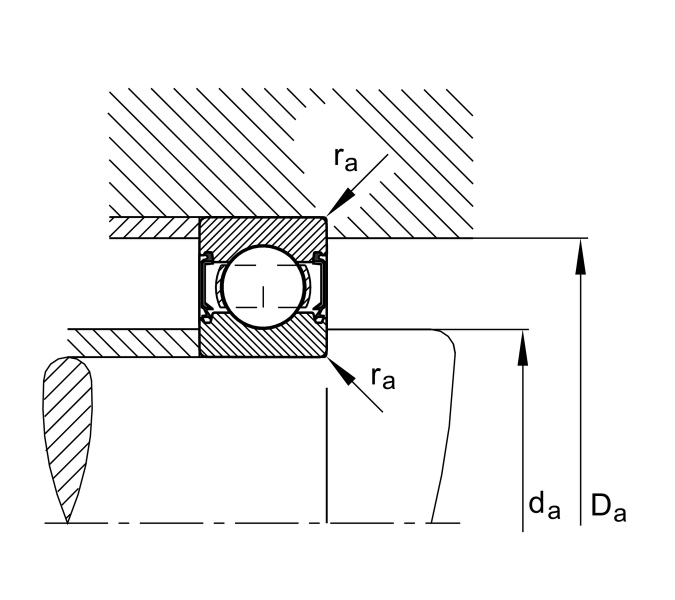

Mounting dimensions
da min
47 mm
Minimum diameter shaft shoulder
da min
73 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
