FAG 6209-C>V
Deep groove ball bearing 62..-C, single row, Generation C, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

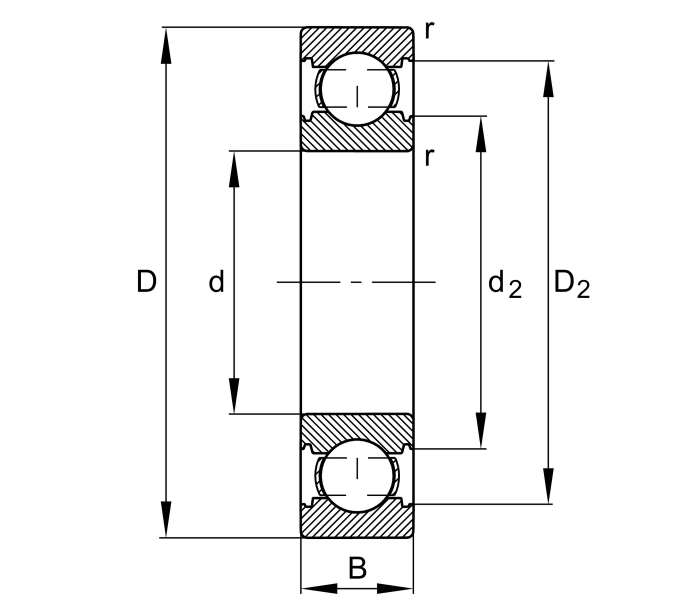

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
19 mm
Width
Cr
35,500 N
Basic dynamic load rating, radial
C0r
20,300 N
Basic static load rating, radial
Cur
1,400 N
Fatigue load limit, radial
CG
12,700 1/min
Limiting speed
nϑr
9,900 1/min
Reference speed
≈m
0.399 kg
Weight

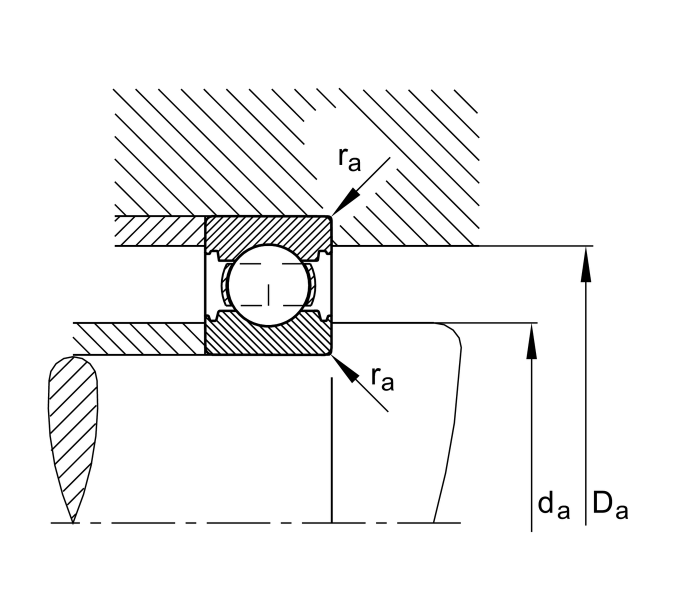

Mounting dimensions
da min
52 mm
Minimum diameter shaft shoulder
da min
78 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
