FAG 6307-C-2HRS>V

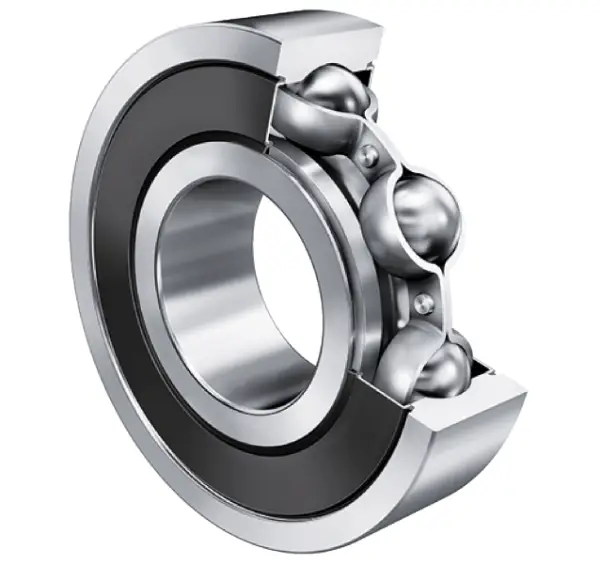

Deep groove ball bearing 63..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
80 mm
Outside diameter
B
21 mm
Width
Cr
38,500 N
Basic dynamic load rating, radial
C0r
19,100 N
Basic static load rating, radial
Cur
1,320 N
Fatigue load limit, radial
CG
8,300 1/min
Limiting speed
≈m
0.443 kg
Weight

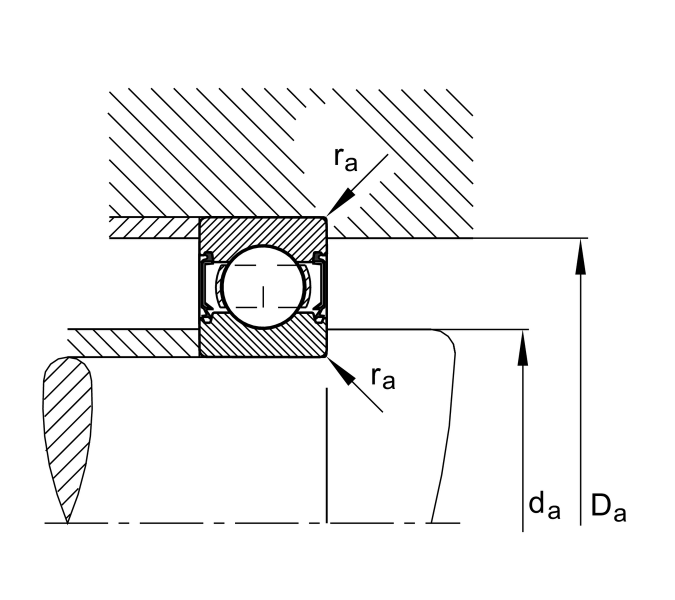

Mounting dimensions
da min
44 mm
Minimum diameter shaft shoulder
da min
71 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
