FAG 6308-C-2Z

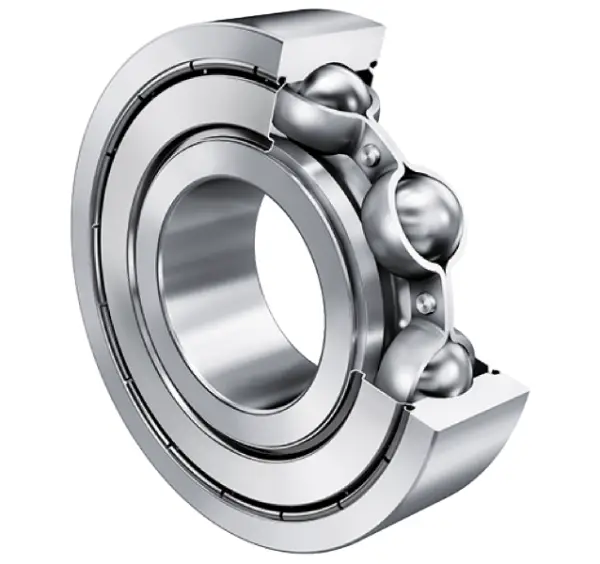

Deep groove ball bearing 63..-C-2Z, single row, Generation C, shields, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

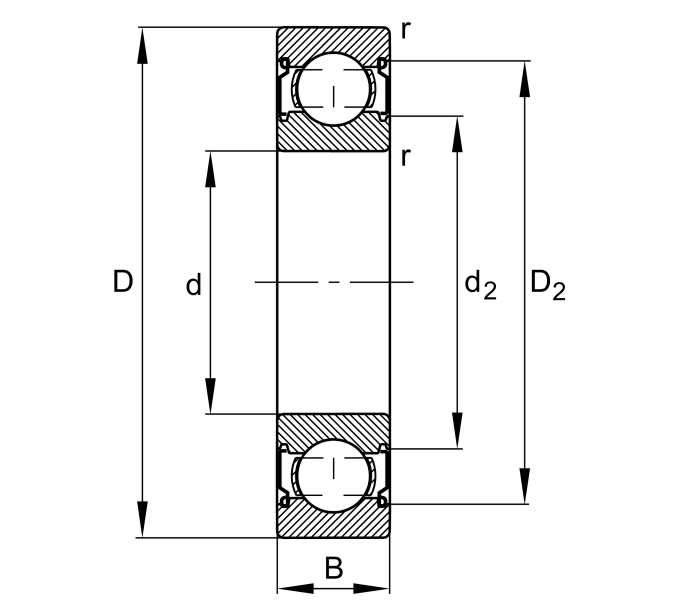

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
90 mm
Outside diameter
B
23 mm
Width
Cr
50,000 N
Basic dynamic load rating, radial
C0r
25,000 N
Basic static load rating, radial
Cur
1,730 N
Fatigue load limit, radial
CG
10,100 1/min
Limiting speed
nϑr
9,900 1/min
Reference speed
≈m
0.606 kg
Weight

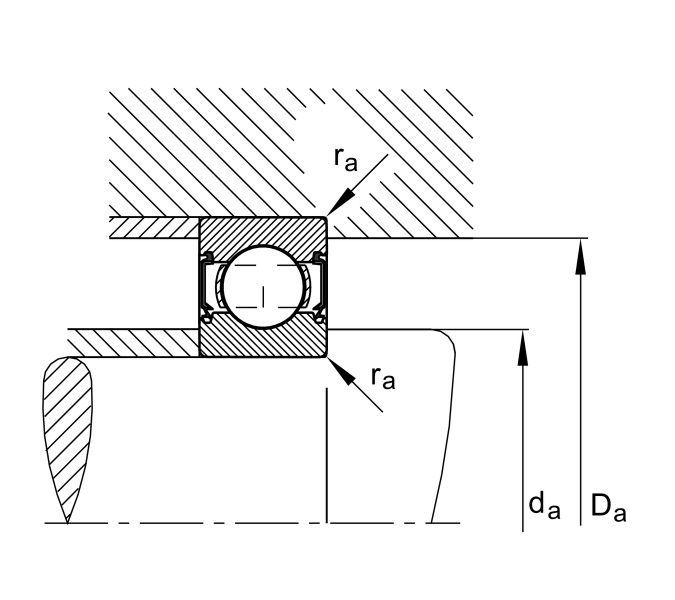

Mounting dimensions
da min
49 mm
Minimum diameter shaft shoulder
da min
81 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
