FAG 6309-C-2HRS

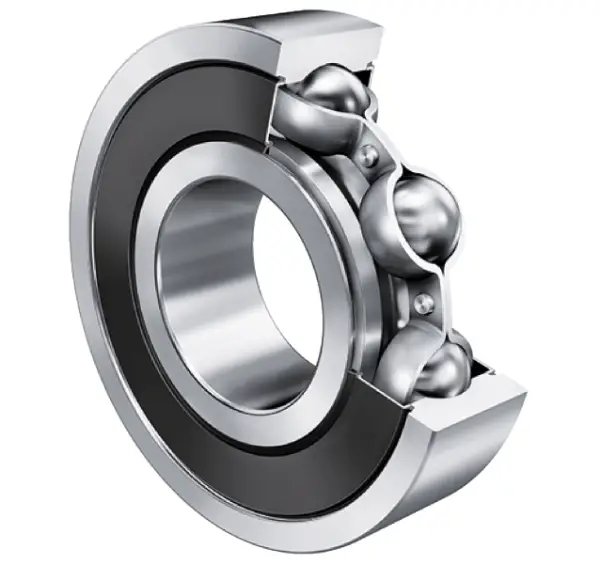

Deep groove ball bearing 63..-C-2HRS, single row, Generation C, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

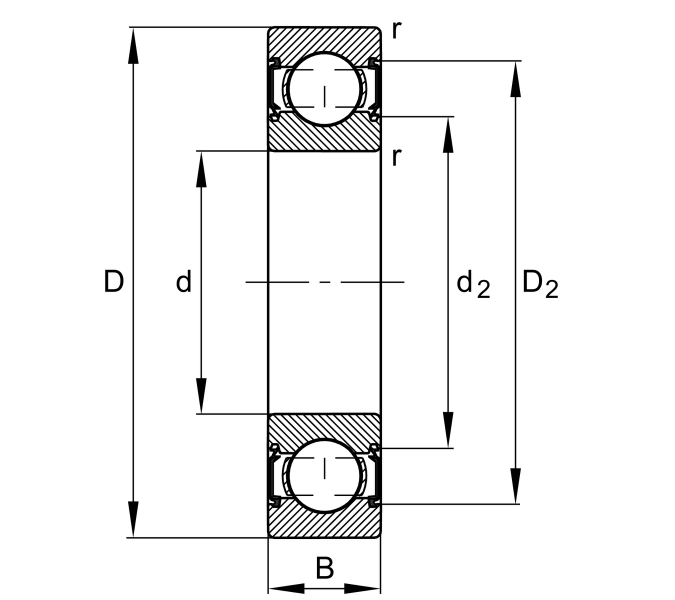

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
100 mm
Outside diameter
B
25 mm
Width
Cr
62,000 N
Basic dynamic load rating, radial
C0r
31,500 N
Basic static load rating, radial
Cur
2,190 N
Fatigue load limit, radial
CG
6,400 1/min
Limiting speed
≈m
0.834 kg
Weight

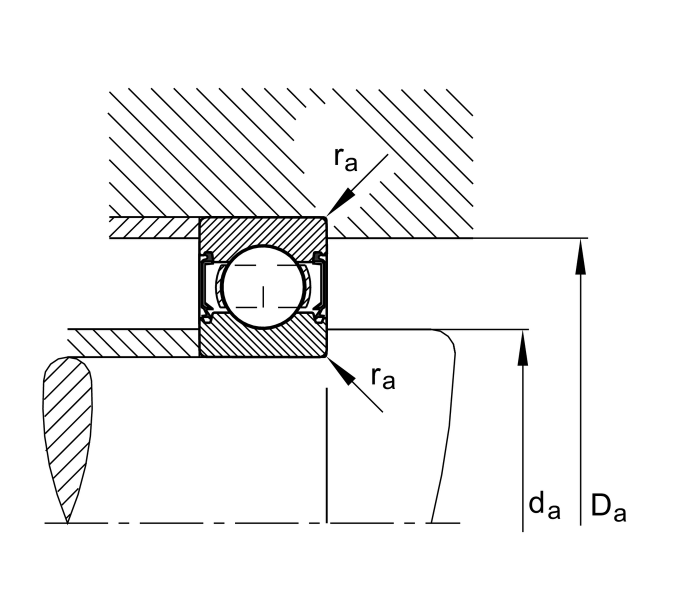

Mounting dimensions
da min
54 mm
Minimum diameter shaft shoulder
da min
91 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
