FAG QJ1260-N2-MPA-C3

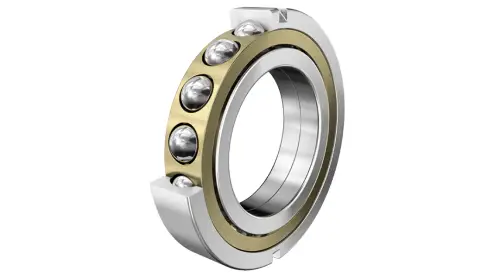

Four-Point Contact Ball Bearings
Four point contact bearing QJ12..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
300 mm
Bore diameter
D
540 mm
Outside diameter
B
98 mm
Width
Cr
920,000 N
Basic dynamic load rating, radial
C0r
1,930,000 N
Basic static load rating, radial
Cur
53,000 N
Fatigue load limit, radial
CG
2,050 1/min
Limiting speed
nϑr
990 1/min
Reference speed
≈m
104 kg
Weight
Mounting dimensions
da min
320 mm
Minimum diameter shaft shoulder
da min
520 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
