INA EGF08095-E40
Plain Bushes

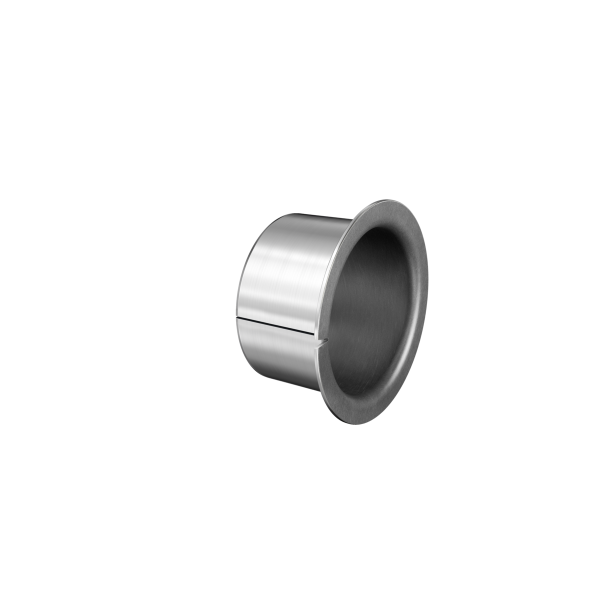

Flanged bush, maintenance-free, ISO 3547, with steel backing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

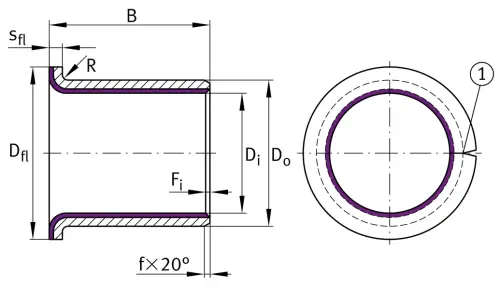

Main Dimensions & Performance Data
Di
8 mm
Inner diameter
Do
10 mm
Outer diameter
Dfl
15 mm
Outside diameter of flange
B
9.5 mm
Width
Cr
8,400 N
Basic dynamic load rating, radial
C0r
15,000 N
Basic static load rating, radial
Ca
8,910 N
Basic dynamic load rating, axial
C0a
15,900 N
Basic static load rating, axial
≈m
2.408 g
Weight
