INA EGF12070-E40-B
Plain Bushes

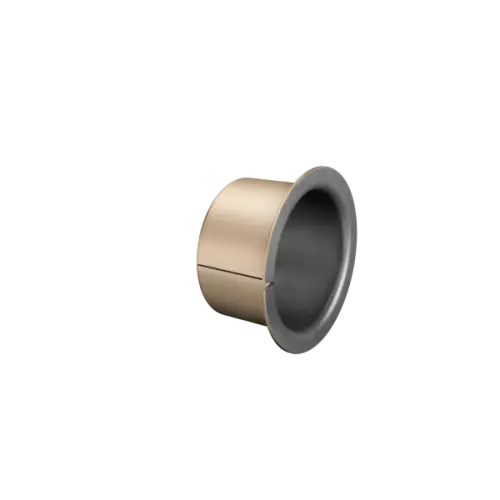

Flanged bush, maintenance-free, ISO 3547, with bronze backing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

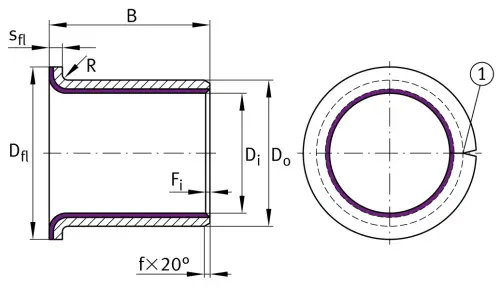

Main Dimensions & Performance Data
Di
12 mm
Inner diameter
Do
14 mm
Outer diameter
Dfl
20 mm
Outside diameter of flange
B
7 mm
Width
Cr
8,400 N
Basic dynamic load rating, radial
C0r
15,000 N
Basic static load rating, radial
Ca
15,800 N
Basic dynamic load rating, axial
C0a
28,300 N
Basic static load rating, axial
≈m
3.05 g
Weight
