INA EGF15120-E40-B
Plain Bushes
Flanged bush, maintenance-free, ISO 3547, with bronze backing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

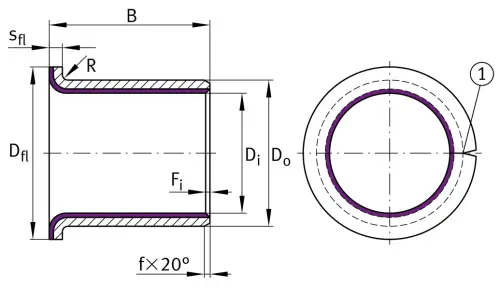

Main Dimensions & Performance Data
Di
15 mm
Inner diameter
Do
17 mm
Outer diameter
Dfl
23 mm
Outside diameter of flange
B
12 mm
Width
Cr
21,000 N
Basic dynamic load rating, radial
C0r
37,500 N
Basic static load rating, radial
Ca
18,500 N
Basic dynamic load rating, axial
C0a
33,000 N
Basic static load rating, axial
≈m
5.66 g
Weight
