INA EGF30260-E40-B
Plain Bushes

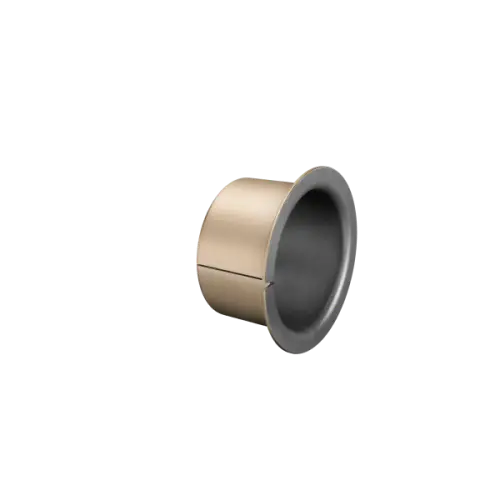

Flanged bush, maintenance-free, ISO 3547, with bronze backing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

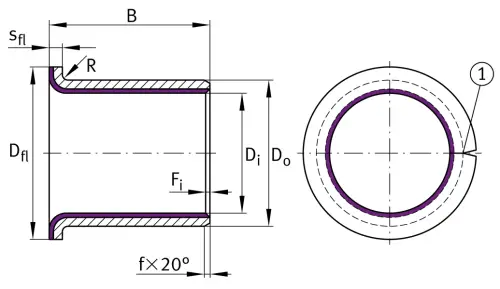

Main Dimensions & Performance Data
Di
30 mm
Inner diameter
Do
34 mm
Outer diameter
Dfl
42 mm
Outside diameter of flange
B
26 mm
Width
Cr
92,400 N
Basic dynamic load rating, radial
C0r
165,000 N
Basic static load rating, radial
Ca
35,200 N
Basic dynamic load rating, axial
C0a
62,800 N
Basic static load rating, axial
≈m
48.82 g
Weight
