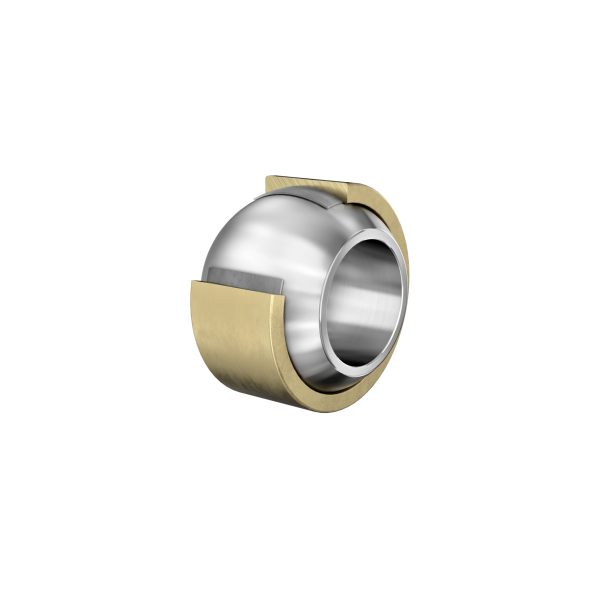

INA GE18-PW
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE film, brass outer ring, DIN ISO 12240-1, dimension series K, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

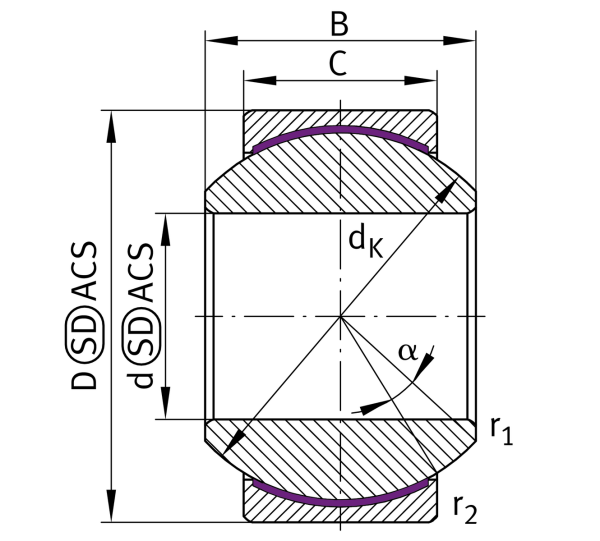

Main Dimensions & Performance Data
d
18 mm
Bore diameter bearing
D
35 mm
Outside diameter bearing
B
23 mm
Width Inner ring
C
16.5 mm
Width Outer ring
Cr
47,300 N
Basic dynamic load rating, radial
C0r
118,000 N
Basic static load rating, radial
≈m
0.107 kg
Weight

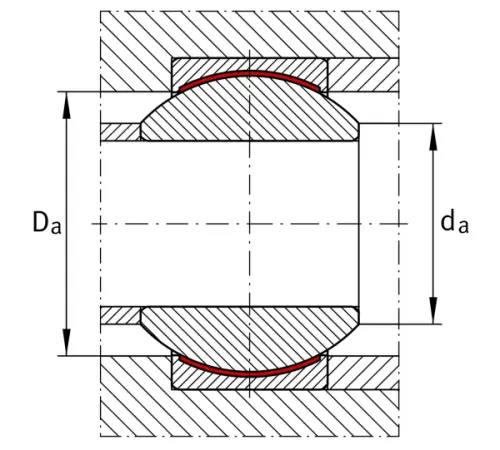

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
Damin
28.5 mm
Housing Connection Diameter
damax
21.8 mm
Connection measurement, inner ring
