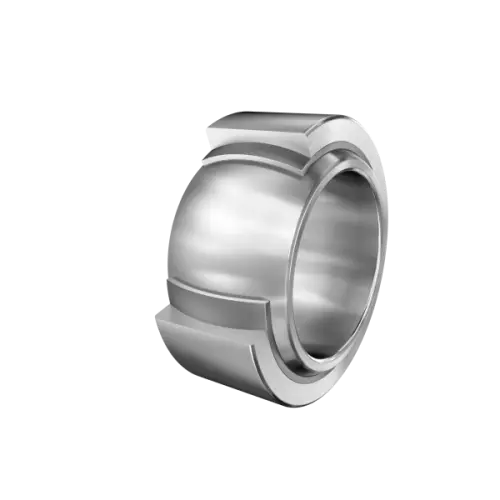

INA GE20-FW
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

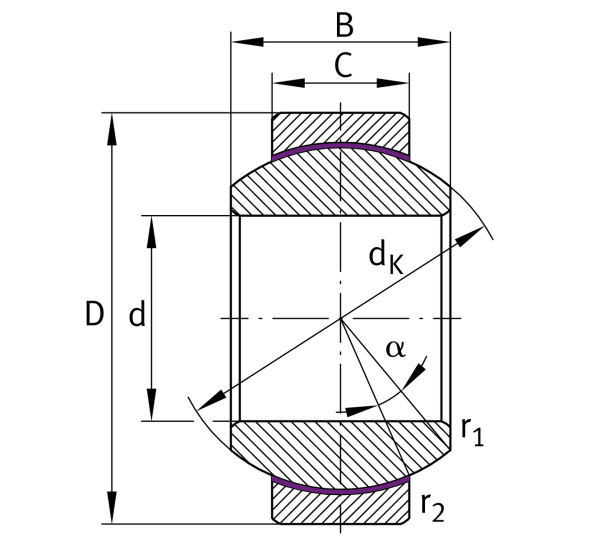

Main Dimensions & Performance Data
d
20 mm
Bore diameter bearing
D
42 mm
Outside diameter bearing
B
25 mm
Width Inner ring
C
16 mm
Width Outer ring
Cr
51,100 N
Basic dynamic load rating, radial
C0r
128,000 N
Basic static load rating, radial
≈m
0.156 kg
Weight

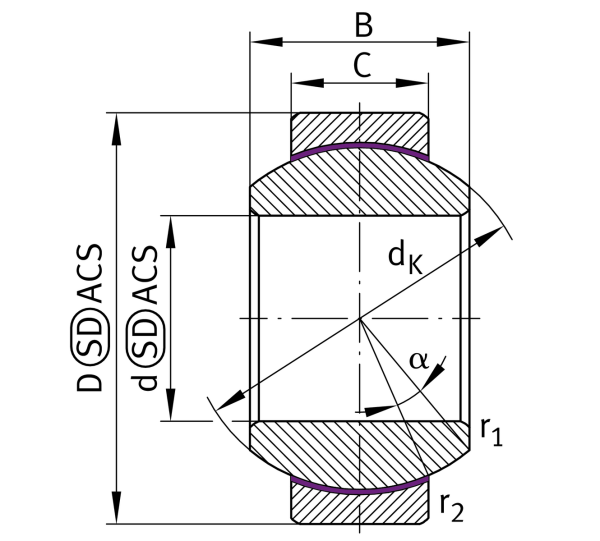

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
Damin
33 mm
Housing Connection Diameter
damax
25.2 mm
Connection measurement, inner ring
