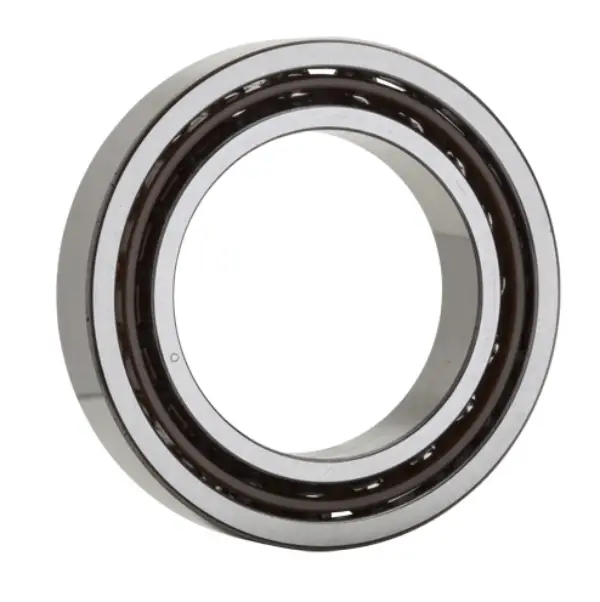

NTN 7009UCP5
Single Angular Contact Ball Bearings - Ultage Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
31200 RPM
Limiting Speed - Grease
19500 RPM
Precision
ISO Class 5
Configuration
One
Factor
15.4
Static Load Rating
20400 N
Dynamic Load Rating
25300 N
Enclosure
Open
Weight
0.230 kg
Operating Temperature Range
-40 to 120 ºC

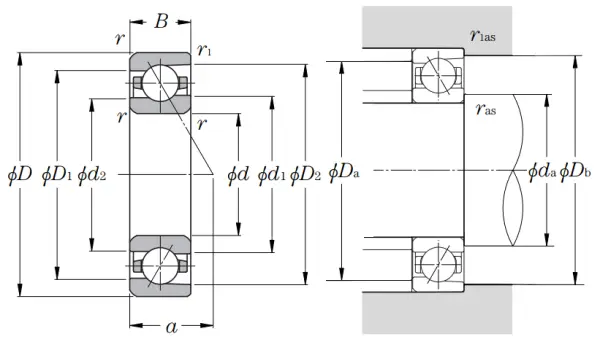

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
16.000 mm
d1
55.300 mm
d2
53.000 mm
D1
64.700 mm
D2
69.400 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
15 º
a (Load Center)
16.100 mm
da min
50.500 mm
Da max
69.500 mm
Db max
70.500 mm
ras max
1.000 mm
r1as max
0.600 mm
Double Row Width
32.000 mm
Triple Row Width
48.000 mm
Quadruple Row Width
64.000 mm
