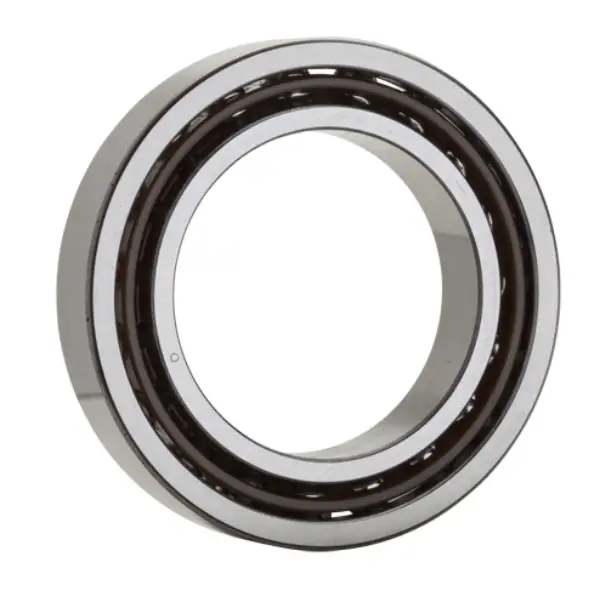

NTN 7015UAD
Single Angular Contact Ball Bearings - Ultage Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
17300 RPM
Limiting Speed - Grease
10700 RPM
Configuration
One
Static Load Rating
45500 N
Dynamic Load Rating
47000 N
Enclosure
Open
Weight
0.640 kg
Operating Temperature Range
-40 to 120 ºC

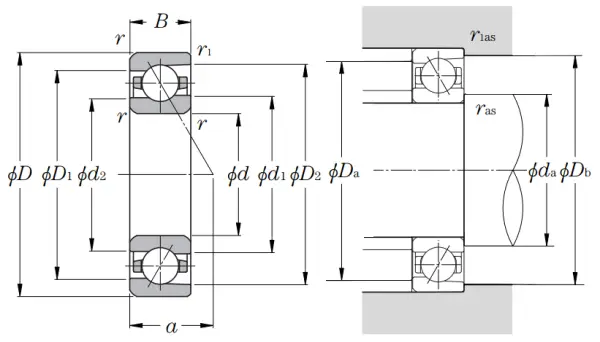

Dimensional Specifications
d
75.000 mm
D
115.000 mm
B
20.000 mm
d1
88.600 mm
d2
85.500 mm
D1
101.400 mm
D2
107.700 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
25 º
a (Load Center)
32.300 mm
da min
82.000 mm
Da max
108.000 mm
Db max
110.500 mm
ras max
1.000 mm
r1as max
0.600 mm
Double Row Width
40.000 mm
Triple Row Width
60.000 mm
Quadruple Row Width
80.000 mm
