NTN 7908UAD
Single Angular Contact Ball Bearings - Ultage Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
32200 RPM
Limiting Speed - Grease
19900 RPM
Configuration
One
Static Load Rating
11200 N
Dynamic Load Rating
11200 N
Enclosure
Open
Weight
0.110 kg
Operating Temperature Range
-40 to 120 ºC

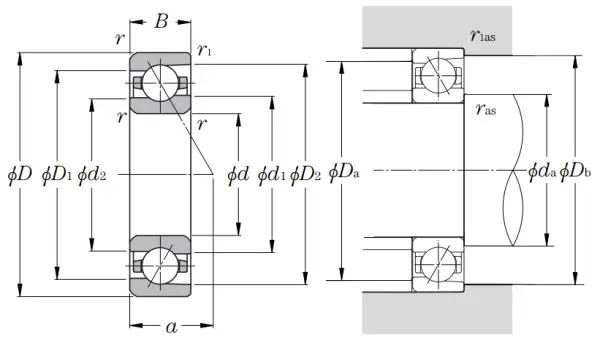

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
d1
47.600 mm
d2
45.900 mm
D1
54.400 mm
D2
57.700 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
25 º
a (Load Center)
18.000 mm
da min
44.500 mm
Da max
57.500 mm
Db max
59.500 mm
ras max
0.600 mm
r1as max
0.300 mm
Double Row Width
24.000 mm
Triple Row Width
36.000 mm
Quadruple Row Width
48.000 mm
