NTN 7926UAD
Single Angular Contact Ball Bearings - Ultage Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
10600 RPM
Limiting Speed - Grease
6600 RPM
Configuration
One
Static Load Rating
95000 N
Dynamic Load Rating
95000 N
Enclosure
Open
Weight
1.570 kg
Operating Temperature Range
-40 to 120 ºC

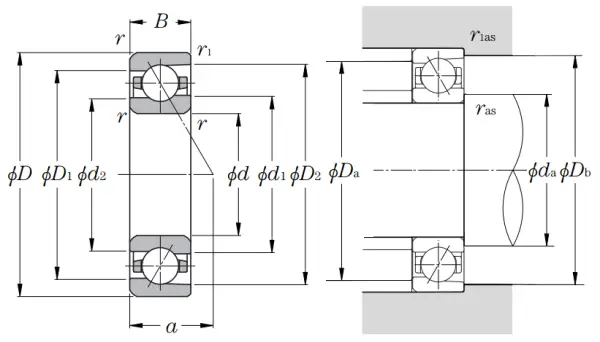

Dimensional Specifications
d
130.000 mm
D
180.000 mm
B
24.000 mm
d1
146.900 mm
d2
143.000 mm
D1
163.200 mm
D2
170.900 mm
r
1.500 mm
r1
1.000 mm
Contact Angle
25 º
a (Load Center)
48.300 mm
da min
138.500 mm
Da max
171.500 mm
Db max
174.500 mm
ras max
1.500 mm
r1as max
1.000 mm
Double Row Width
48.000 mm
Triple Row Width
72.000 mm
Quadruple Row Width
96.000 mm
