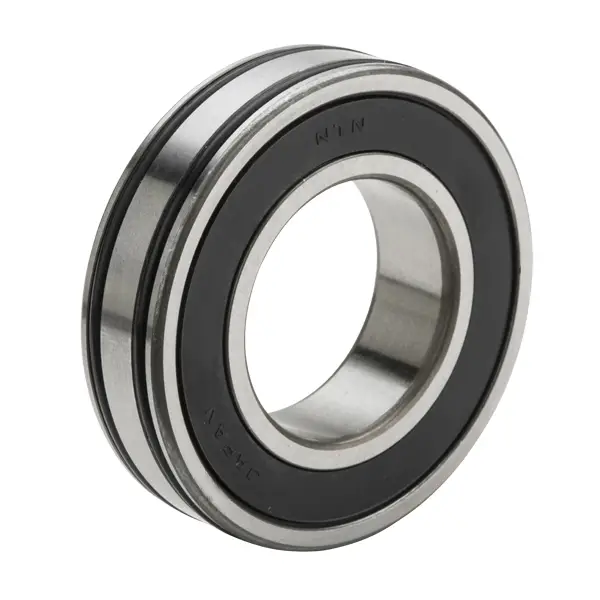

NTN AC-6203LLB
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
18000 RPM
Precision
Class 0
Configuration
One
Factor
12.8
Radial Internal Clearance
CN
Static Load Rating
4600 N
Dynamic Load Rating
10600 N
Enclosure
Double Sealed
Weight
0.061 kg
Operating Temperature Range
-40 to 120 ºC

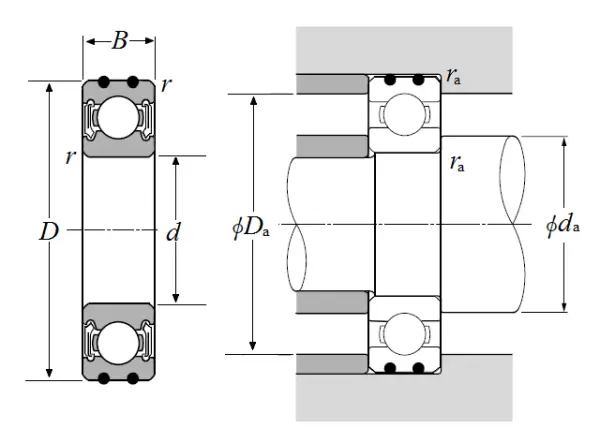

Dimensional Specifications
d
17.000 mm
D
40.000 mm
B
12.000 mm
r
0.600 mm
da min
21.000 mm
da max
23.000 mm
Da max
36.000 mm
ras max
0.600 mm
