NTN HMK4540ZWD
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
3700 RPM
Bearing Type
Needle Roller Bearing
Configuration
Two
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/ Oil Hole
Static Load Rating
113000 N
Dynamic Load Rating
59500 N
Weight
0.167 kg
Operating Temperature Range
-40 to 120 ºC

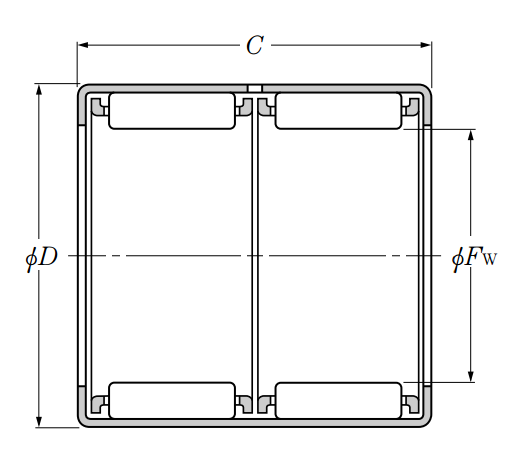

Dimensional Specifications
Fw
45.000 mm
D
55.000 mm
C
40.000 mm
