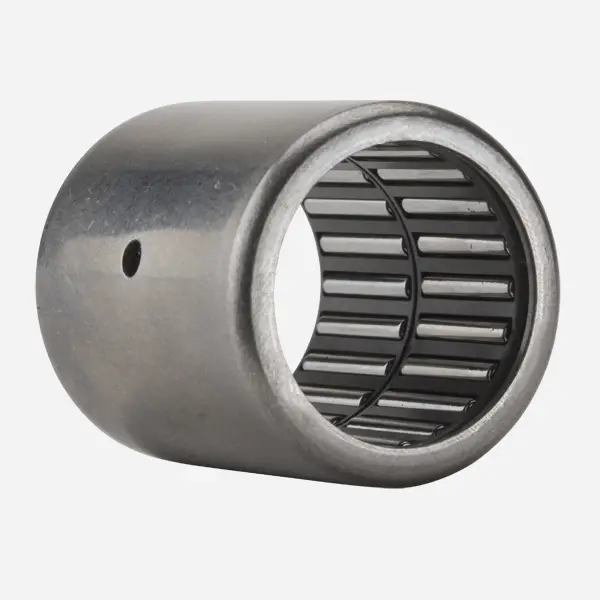

NTN HMK5040ZWD
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
4800 RPM
Limiting Speed - Grease
3200 RPM
Bearing Type
Needle Roller Bearing
Configuration
Two
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/ Oil Hole
Static Load Rating
134000 N
Dynamic Load Rating
70000 N
Weight
0.224 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
50.000 mm
D
62.000 mm
C
40.000 mm
