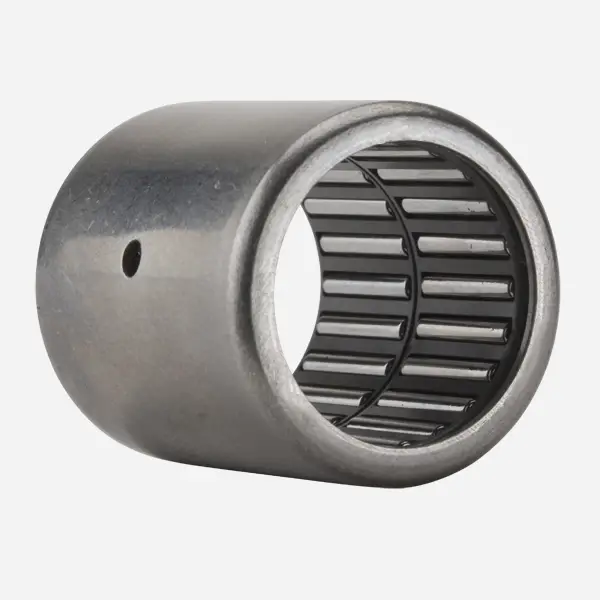

NTN HMK5045ZWD
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
4800 RPM
Limiting Speed - Grease
3200 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/ Oil Hole
Static Load Rating
156000 N
Dynamic Load Rating
79000 N
Weight
0.253 kg
Operating Temperature Range
-40 to 120 ºC

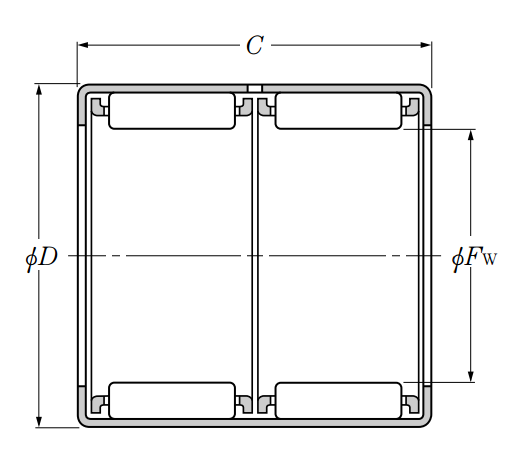

Dimensional Specifications
Fw
50.000 mm
D
62.000 mm
C
45.000 mm
